Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2012-11-26 01:40:08.6 |
| Date & Time (Local) | 1391/9/6 05:10:08.6 |

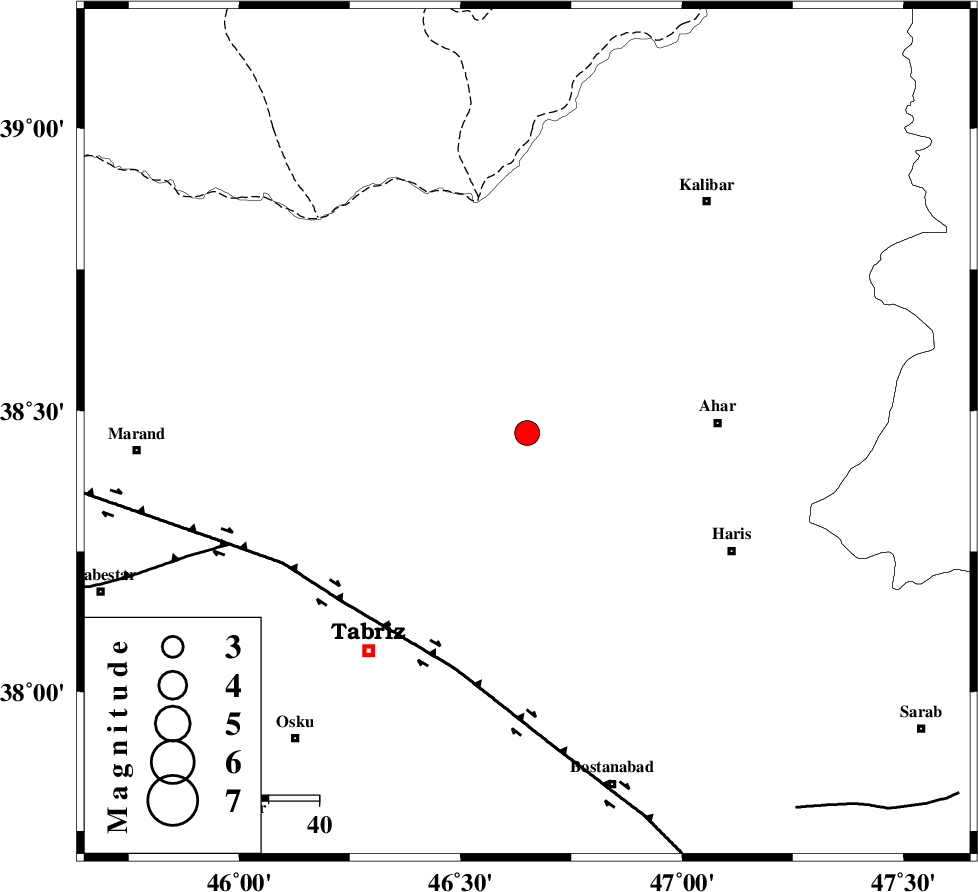

| Location | Lat:38.46 Lon: 46.65 |
| Region | Azarbaijan Sharghi Province, 38 km West of Ahar |
Nearest Cities |
|
| 3 km of Varzagan, Azarbaijan Sharghi Province | |
| 13 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 19 km North of Sarand, Azarbaijan Sharghi Province | |
| 20 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 21 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 49 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 63 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 91 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87153 | IIEES | GRMI | N | 951.7 | 0.2 | 2012-11-26 01:40:44 | 2012-11-26 01:13:00 | n |
| 87154 | IIEES | MAKU | N | 500.2 | 0.44 | 2012-11-26 01:41:06 | 2012-11-26 01:13:00 | n |
| 87155 | IIEES | MAKU | E | 476 | 0.36 | 2012-11-26 01:41:10 | 2012-11-26 01:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-26 01:40:28 | 0 | y | 115 | 70 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-26 01:40:40 | 0 | y | 197 | 301 | |||
| IIEES | MAKU | N | Sg | E | 2012-11-26 01:41:04 | 0 | y | 197 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-26 01:40:49 | 0 | y | 268 | 137 | |||
