Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2012-11-27 09:20:02.1 |
| Date & Time (Local) | 1391/9/7 12:50:02.1 |

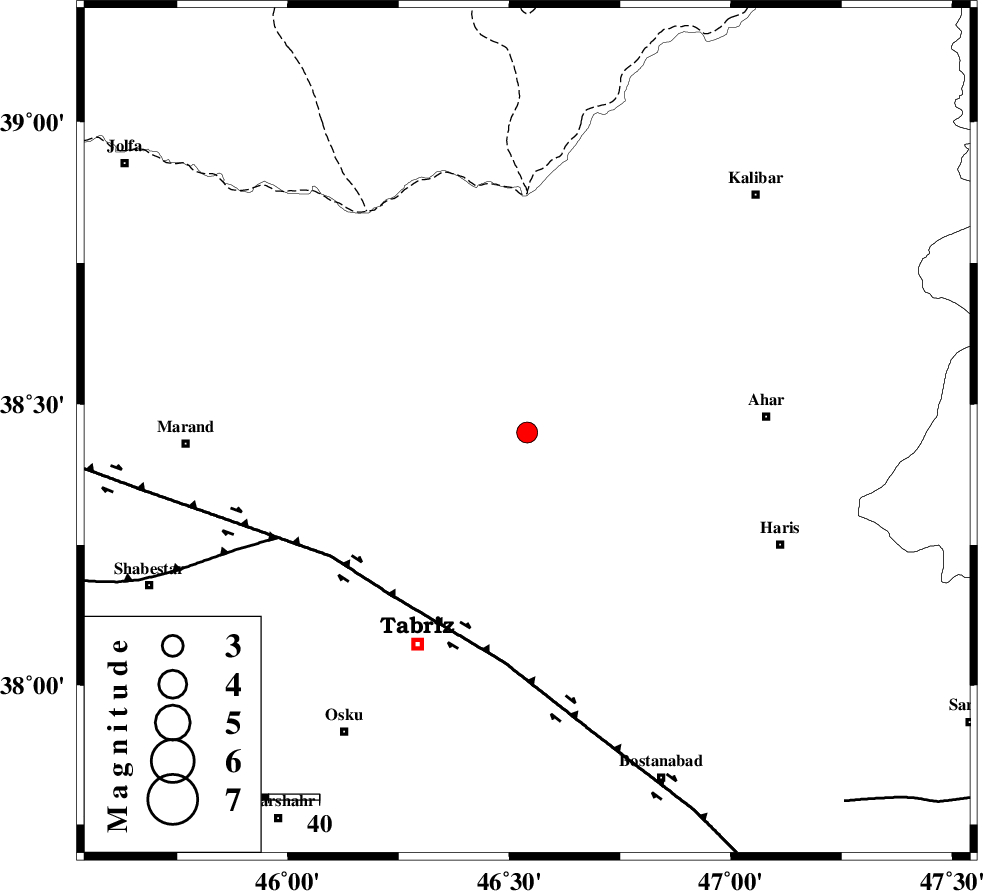

| Location | Lat:38.45 Lon: 46.54 |
| Region | Azarbaijan Sharghi Province, 47 km West of Ahar |
Nearest Cities |
|
| 9 km of Varzagan, Azarbaijan Sharghi Province | |
| 13 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 18 km North of Sarand, Azarbaijan Sharghi Province | |
| 24 km South East of Joshin, Azarbaijan Sharghi Province | |
| 25 km North East of Yangi esperan, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 42 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 53 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 91 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >3 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87180 | IIEES | GRMI | N | 285.6 | 0.16 | 2012-11-27 09:20:39 | 2012-11-27 09:38:00 | n |
| 87181 | IIEES | GRMI | E | 451.7 | 0.16 | 2012-11-27 09:20:40 | 2012-11-27 09:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-27 09:20:22 | -0.44 | y | 124 | 71 | |||
| IIEES | GRMI | N | Sg | E | 2012-11-27 09:20:38 | 0.27 | y | 124 | 71 | |||
| IIEES | MAKU | Z | Pg | E | 2012-11-27 09:20:33 | 0.11 | y | 190 | 302 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-27 09:20:43 | 0 | y | 274 | 136 | |||
| IIEES | ZNJK | N | Sg | E | 2012-11-27 09:21:19 | 0.06 | y | 274 | 136 | |||
