Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2012-11-29 10:10:58.3 |
| Date & Time (Local) | 1391/9/9 13:40:58.3 |

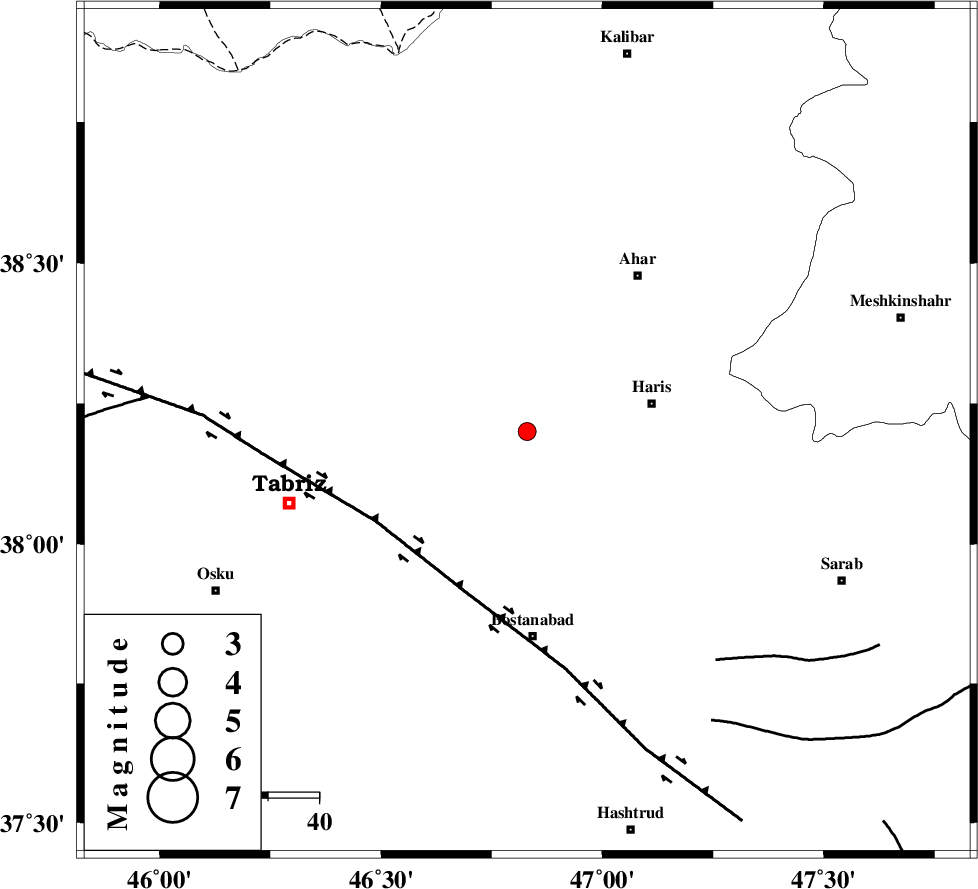

| Location | Lat:38.2 Lon: 46.83 |
| Region | Azarbaijan Sharghi Province, 26 km West of Haris |
Nearest Cities |
|
| 5 km of Bilverdi, Azarbaijan Sharghi Province | |
| 12 km North West of Bakhshayesh, Azarbaijan Sharghi Province | |
| 16 km South West of Nikcheh, Azarbaijan Sharghi Province | |
| 18 km North West of Koluofogh, Azarbaijan Sharghi Province | |
| 21 km North East of Khvajeh, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 34 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 59 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 75 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 4 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87193 | IIEES | GRMI | N | 119.2 | 0.2 | 2012-11-29 10:11:36 | 2012-11-29 10:27:00 | n |
| 87194 | IIEES | GRMI | E | 105.5 | 0.22 | 2012-11-29 10:11:36 | 2012-11-29 10:27:00 | n |
| 87195 | IIEES | MAKU | E | 34.2 | 0.37 | 2012-11-29 10:12:08 | 2012-11-29 10:27:00 | n |
| 87196 | IIEES | MAKU | N | 34.8 | 0.43 | 2012-11-29 10:12:09 | 2012-11-29 10:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-29 10:11:17 | -0.01 | y | 115 | 53 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-29 10:11:34 | 0.23 | y | 226 | 305 | |||
| IIEES | MAKU | E | Sg | E | 2012-11-29 10:12:02 | -0.25 | y | 226 | 305 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-29 10:11:35 | 0.32 | y | 236 | 135 | |||
| IIEES | ZNJK | E | Sg | E | 2012-11-29 10:12:04 | -0.28 | y | 236 | 135 | |||
