Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2012-11-29 16:02:13.3 |
| Date & Time (Local) | 1391/9/9 19:32:13.3 |

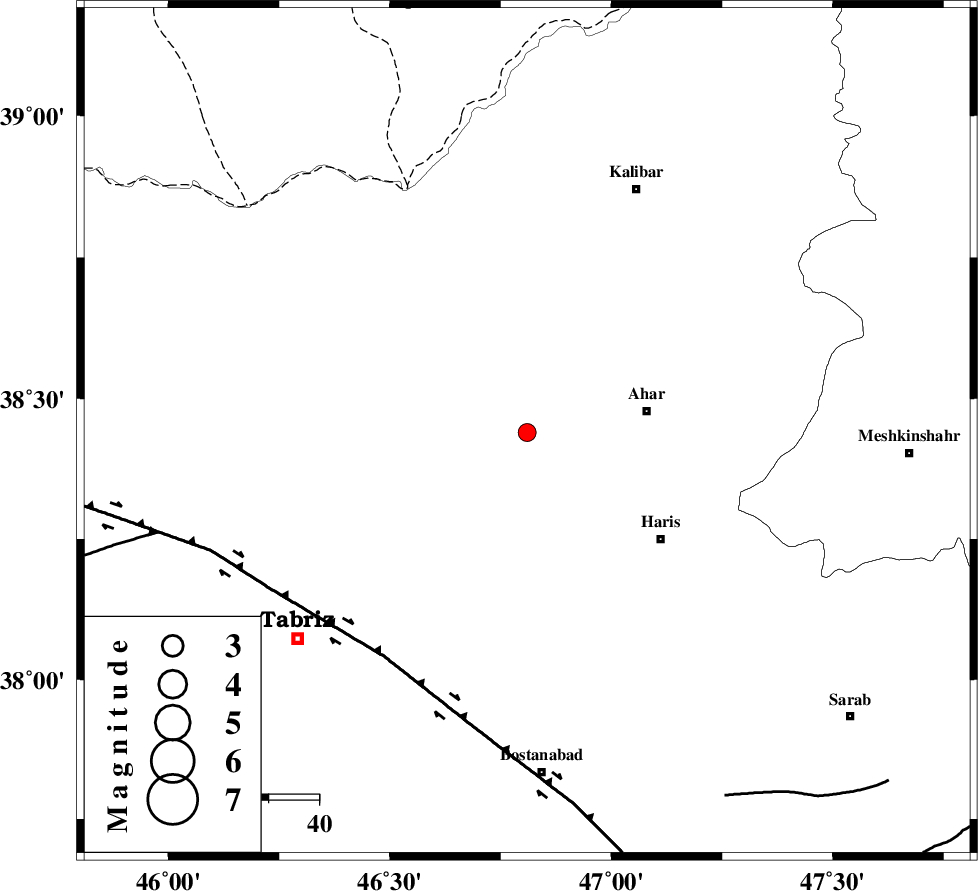

| Location | Lat:38.44 Lon: 46.81 |
| Region | Azarbaijan Sharghi Province, 24 km West of Ahar |
Nearest Cities |
|
| 15 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km East of Varzagan, Azarbaijan Sharghi Province | |
| 19 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| 19 km West of Khuniq, Azarbaijan Sharghi Province | |
| 19 km South West of Azghan, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 53 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 75 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 82 km | |
| Number of Phases | 4 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >6.5 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87201 | IIEES | GRMI | E | 170.8 | 0.24 | 2012-11-29 16:02:44 | 2012-11-29 04:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-11-29 16:02:30 | 0.01 | y | 103 | 66 | |||
| IIEES | MAKU | Z | Pn | E | 2012-11-29 16:02:47 | 0.24 | y | 211 | 299 | |||
| IIEES | MAKU | E | Sg | E | 2012-11-29 16:03:13 | -0.14 | y | 211 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-11-29 16:02:53 | -0.12 | y | 257 | 139 | |||
