Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2012-12-02 10:59:26.1 |
| Date & Time (Local) | 1391/9/12 14:29:26.1 |

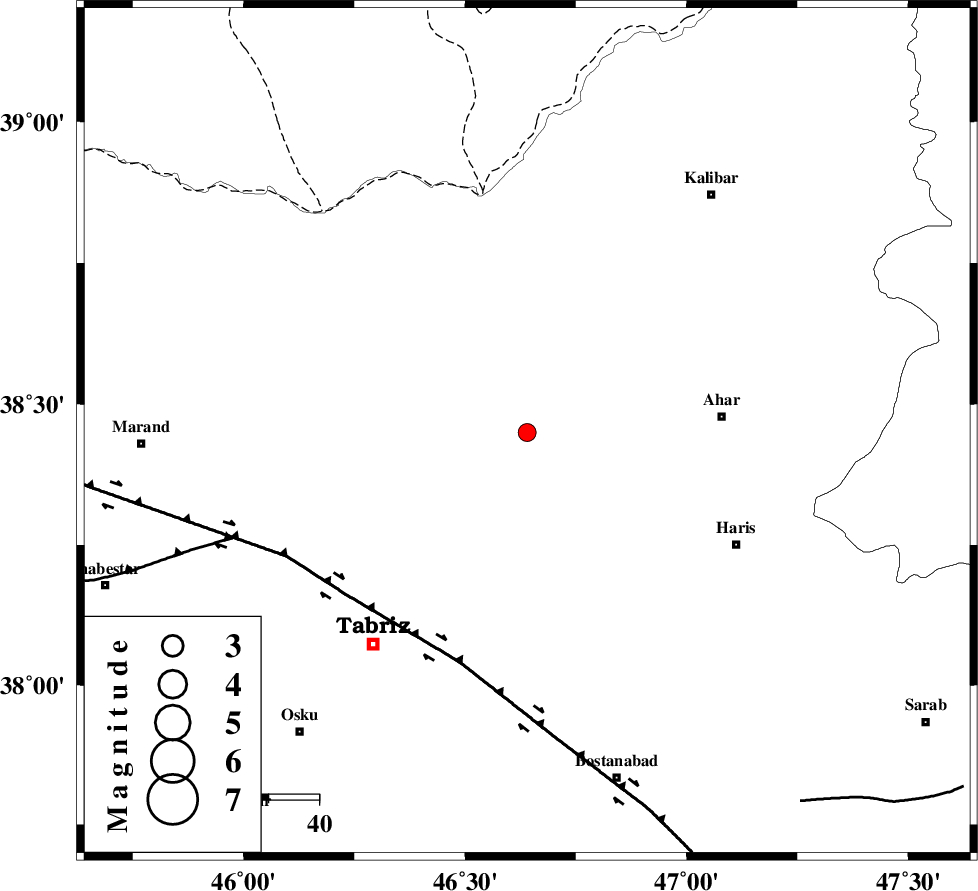

| Location | Lat:38.45 Lon: 46.64 |
| Region | Azarbaijan Sharghi Province, 38 km West of Ahar |
Nearest Cities |
|
| 4 km of Varzagan, Azarbaijan Sharghi Province | |
| 14 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 17 km North of Sarand, Azarbaijan Sharghi Province | |
| 21 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 23 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 47 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 61 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 91 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87232 | IIEES | GRMI | E | 150.2 | 0.2 | 2012-12-02 11:00:02 | 2012-12-02 11:36:00 | n |
| 87233 | IIEES | GRMI | N | 101.5 | 0.13 | 2012-12-02 11:00:02 | 2012-12-02 11:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-12-02 10:59:45 | -0.11 | y | 116 | 69 | |||
| IIEES | GRMI | N | Sg | E | 2012-12-02 11:00:00 | 0.05 | y | 116 | 69 | |||
| IIEES | MAKU | Z | Pg | E | 2012-12-02 10:59:58 | -0.11 | y | 197 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-12-02 11:00:07 | 0.43 | y | 267 | 137 | |||
| IIEES | ZNJK | N | Sg | E | 2012-12-02 11:00:41 | -0.25 | y | 267 | 137 | |||
