Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2012-12-08 21:31:50.5 |
| Date & Time (Local) | 1391/9/19 01:01:50.5 |

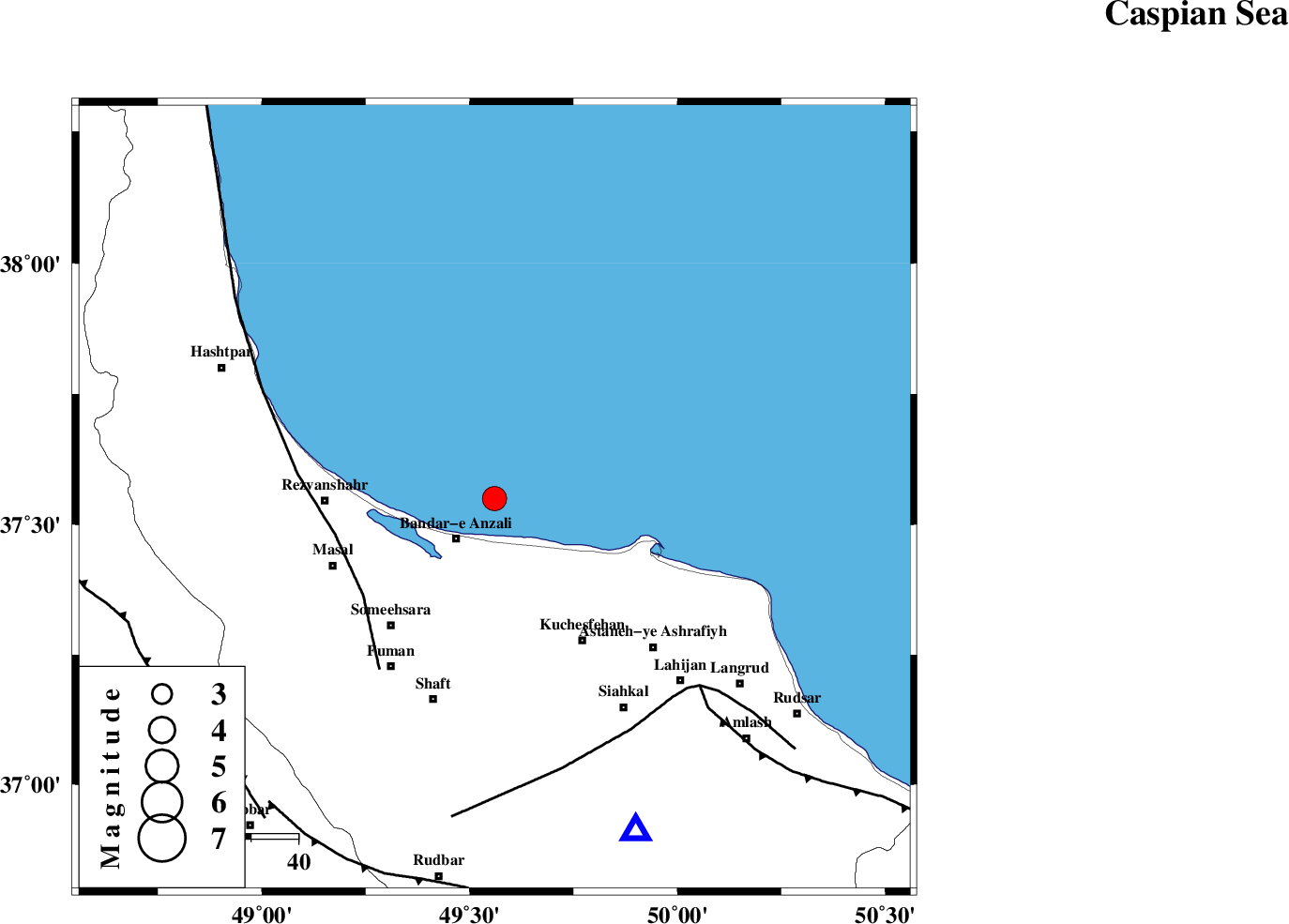

| Location | Lat:37.55 Lon: 49.56 |
| Region | Caspian Sea, 12 km Bandar-e anzali |
Nearest Cities |
|
| 12 km North of Bandar-e anzali, Gilan Province | |
| 16 km North of Chaparkhaneh, Gilan Province | |
| 20 km North of Khomam, Gilan Province | |
| 22 km North of Jokam, Gilan Province | |
| 24 km North West of Katehsar, Gilan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 35 km | |
| LAHIJAN_F (Length: 92 km) , Distance to epicenter: 57 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 59 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 6.8 km |
| Error in Depth | 2.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87293 | IIEES | GRMI | N | 295.8 | 0.48 | 2012-12-08 21:32:50 | 2012-12-08 09:56:00 | n |
| 87294 | IIEES | GRMI | E | 232.8 | 0.48 | 2012-12-08 21:32:52 | 2012-12-08 09:56:00 | n |
| 87295 | IIEES | THKV | E | 1027.3 | 0.56 | 2012-12-08 21:32:59 | 2012-12-08 09:56:00 | n |
| 87296 | IIEES | THKV | N | 734.5 | 0.6 | 2012-12-08 21:32:59 | 2012-12-08 09:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-12-08 21:32:23 | 0 | y | 203 | 314 | |||
| IIEES | THKV | Z | Pn | E | 2012-12-08 21:32:24 | -0.02 | y | 216 | 147 | |||
| IIEES | THKV | N | Sg | E | 2012-12-08 21:32:51 | 0.03 | y | 216 | 147 | |||
| IIEES | GHVR | N | Sg | E | 2012-12-08 21:33:34 | -0.04 | y | 373 | 156 | |||
| IIEES | KHMZ | Z | Pn | E | 2012-12-08 21:32:50 | 0.03 | y | 424 | 175 | |||
