Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2012-12-23 07:12:32.6 |
| Date & Time (Local) | 1391/10/3 10:42:32.6 |
| Location | Lat:38.46 Lon: 44.9 |
| Region | Azarbaijan Gharbi Province, 11 km Khoy |
Nearest Cities |
|
| 2 km North of Quruq, Azarbaijan Gharbi Province | |
| 11 km of Khoy, Azarbaijan Gharbi Province | |
| 11 km West of Dizaj diz, Azarbaijan Gharbi Province | |
| 13 km East of Beyk sofla, Azarbaijan Gharbi Province | |
| 16 km South West of Saeedabad, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |

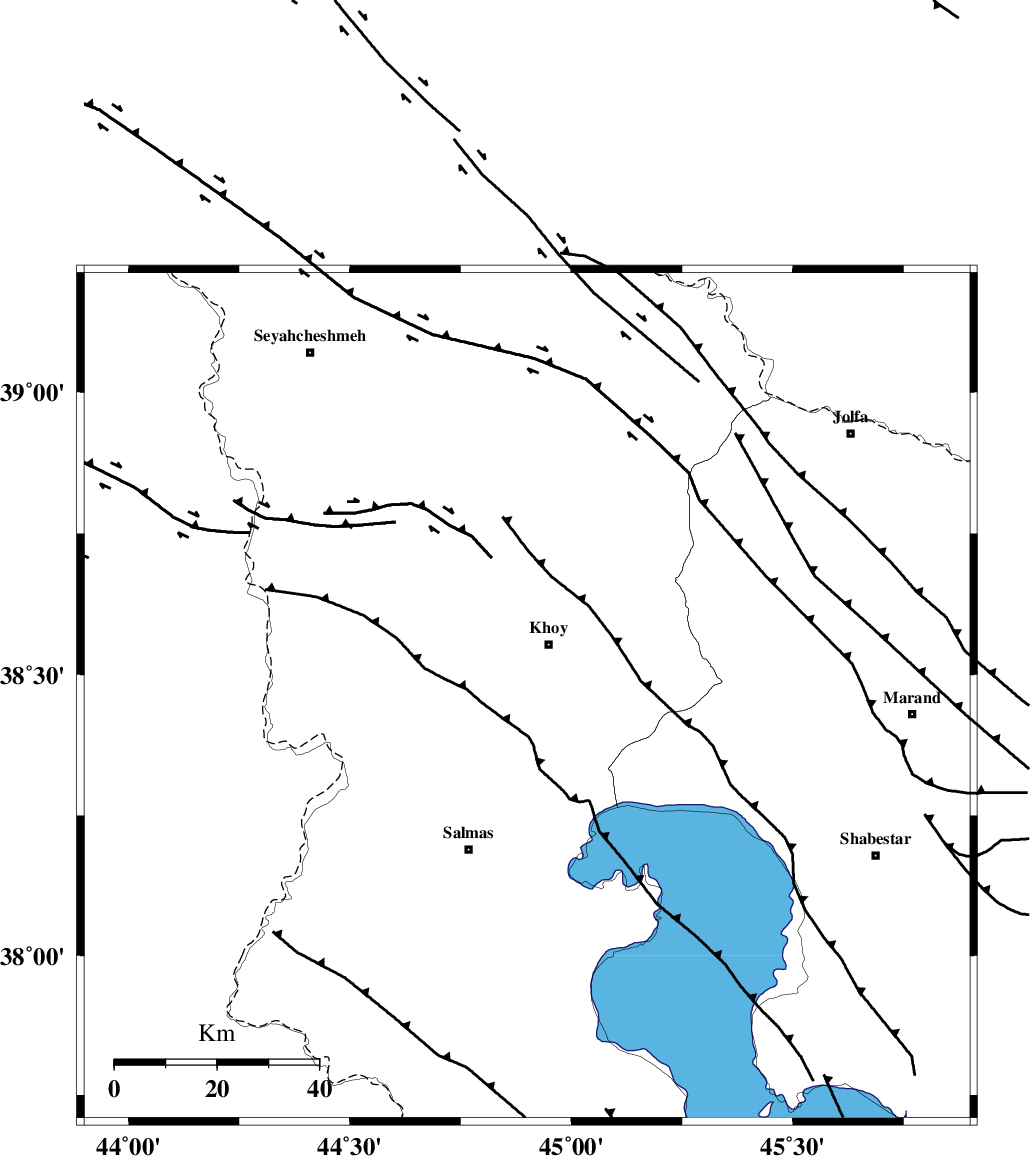

Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 13 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 18 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 37 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87397 | IIEES | GRMI | E | 394.8 | 0.36 | 2012-12-23 07:13:49 | 2012-12-23 07:31:00 | n |
| 87398 | IIEES | GRMI | N | 408.3 | 0.69 | 2012-12-23 07:13:50 | 2012-12-23 07:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2012-12-23 07:12:49 | -0.23 | y | 101 | 350 | |||
| IIEES | MAKU | E | Sg | E | 2012-12-23 07:13:02 | 0.13 | y | 101 | 350 | |||
| IIEES | GRMI | Z | Pn | E | 2012-12-23 07:13:13 | 0.27 | y | 264 | 81 | |||
| IIEES | GRMI | N | Sg | E | 2012-12-23 07:13:47 | -0.09 | y | 264 | 81 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-12-23 07:13:28 | -0.01 | y | 389 | 120 | |||
| IIEES | BJRD | Z | Pn | E | 2012-12-23 07:14:56 | -0.48 | y | 1100 | 91 | |||
