Event Specification
Magnitude |
4.6 |
| Date & Time (UTC) | 2012-12-23 06:38:57.4 |
| Date & Time (Local) | 1391/10/3 10:08:57.4 |

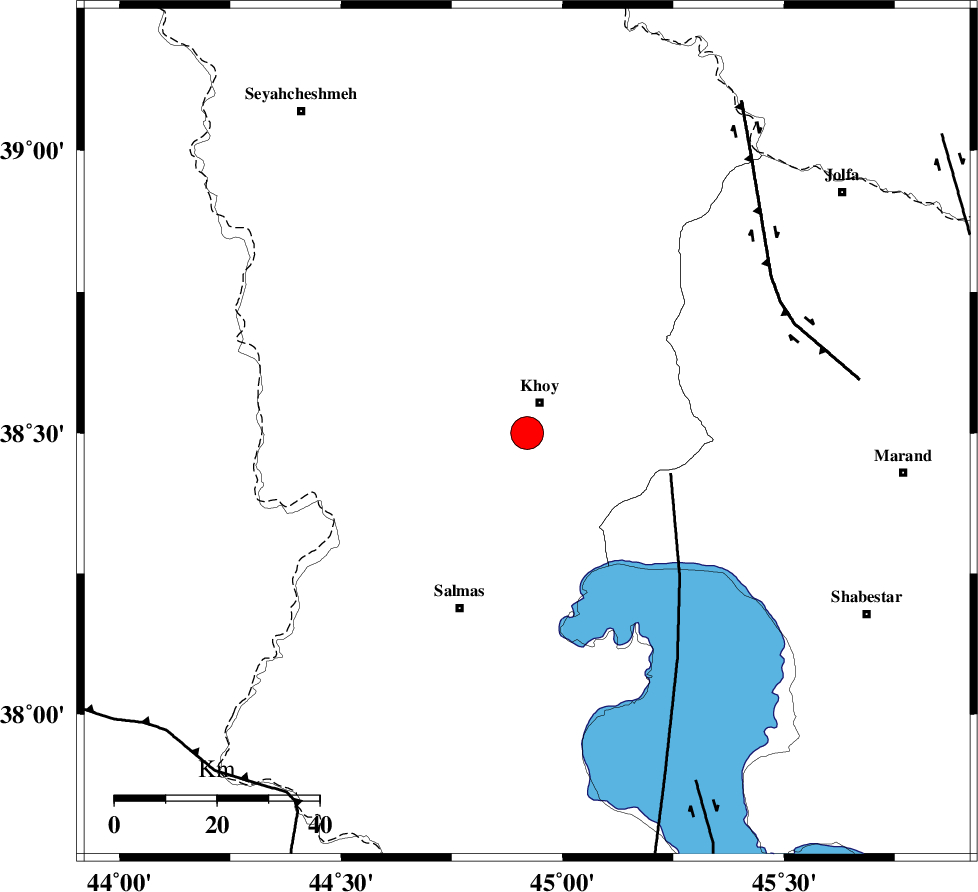

| Location | Lat:38.5 Lon: 44.92 |
| Region | Azarbaijan Gharbi Province, 6 km Khoy |
Nearest Cities |
|
| 6 km North of Quruq, Azarbaijan Gharbi Province | |
| 7 km of Khoy, Azarbaijan Gharbi Province | |
| 11 km North West of Dizaj diz, Azarbaijan Gharbi Province | |
| 12 km West of Saeedabad, Azarbaijan Gharbi Province | |
| 12 km East of Beyk sofla, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 8 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 22 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 36 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 3 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87402 | IIEES | GRMI | N | 3591.2 | 0.71 | 2012-12-23 06:40:17 | 2012-12-23 09:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2012-12-23 06:39:13 | -0.09 | y | 96.6 | 348 | |||
| IIEES | MAKU | E | Sg | E | 2012-12-23 06:39:26 | 0.03 | y | 96.6 | 348 | |||
| IIEES | GRMI | Z | Pn | E | 2012-12-23 06:39:37 | 0.21 | y | 261 | 82 | |||
| IIEES | GRMI | N | Sg | E | 2012-12-23 06:40:11 | -0.06 | y | 261 | 82 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-12-23 06:39:53 | -0.02 | y | 390 | 120 | |||
| IIEES | CHTH | Z | Pn | E | 2012-12-23 06:40:22 | 0.01 | y | 621 | 116 | |||
| IIEES | ASAO | Z | Pn | E | 2012-12-23 06:40:24 | -0.06 | y | 634 | 132 | |||
| IIEES | BJRD | Z | Pn | E | 2012-12-23 06:41:21 | -0.45 | y | 1098 | 91 | |||
