Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2012-12-25 02:40:07.9 |
| Date & Time (Local) | 1391/10/5 06:10:07.9 |

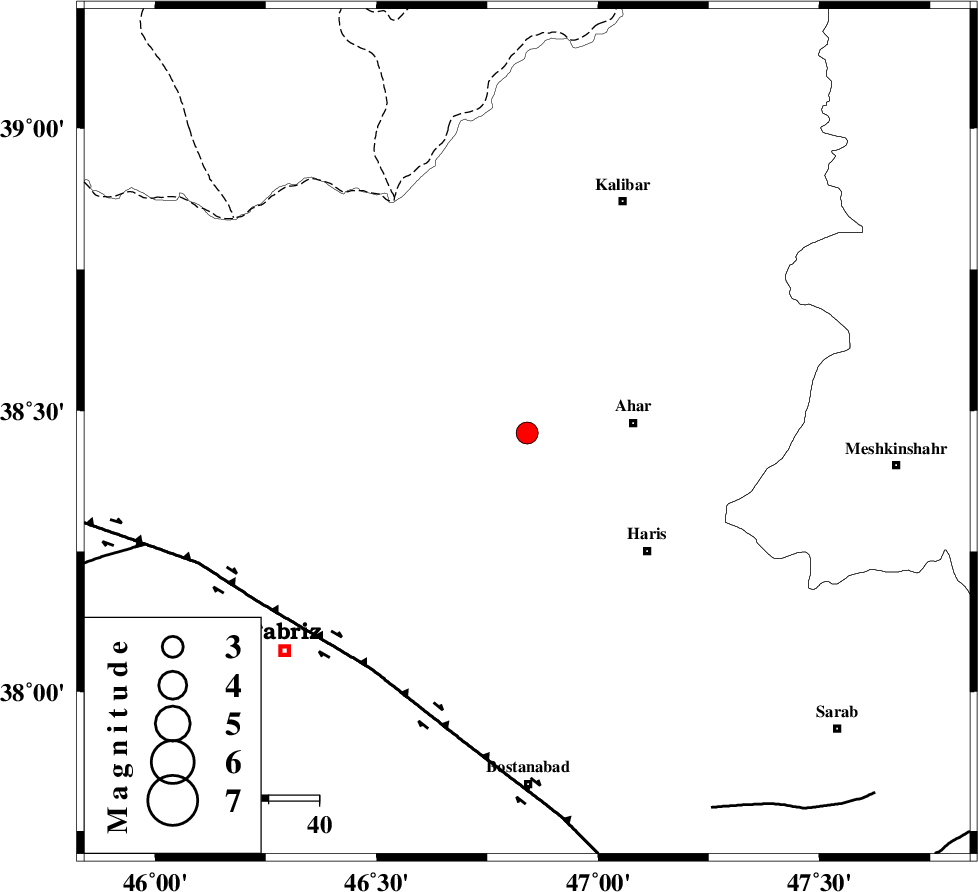

| Location | Lat:38.46 Lon: 46.84 |
| Region | Azarbaijan Sharghi Province, 21 km West of Ahar |
Nearest Cities |
|
| 13 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km South West of Azghan, Azarbaijan Sharghi Province | |
| 17 km North West of Khuniq, Azarbaijan Sharghi Province | |
| 18 km East of Varzagan, Azarbaijan Sharghi Province | |
| 19 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 56 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 78 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 83 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >6.2 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87420 | IIEES | GRMI | E | 558 | 0.28 | 2012-12-25 02:40:39 | 2012-12-25 03:06:00 | n |
| 87421 | IIEES | GRMI | N | 591 | 0.16 | 2012-12-25 02:40:40 | 2012-12-25 03:06:00 | n |
| 87422 | IIEES | MAKU | N | 122.1 | 0.44 | 2012-12-25 02:41:11 | 2012-12-25 03:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-12-25 02:40:24 | -0.02 | y | 100 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2012-12-25 02:40:42 | 0.24 | y | 212 | 299 | |||
| IIEES | MAKU | E | Sg | E | 2012-12-25 02:41:08 | -0.14 | y | 212 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-12-25 02:40:47 | -0.07 | y | 257 | 140 | |||
