Event Specification

Magnitude |
3.2 |
Date & Time (UTC) | 2012-12-28 19:45:36.4 |
Date & Time (Local) | 1391/10/8 23:15:36.4 |

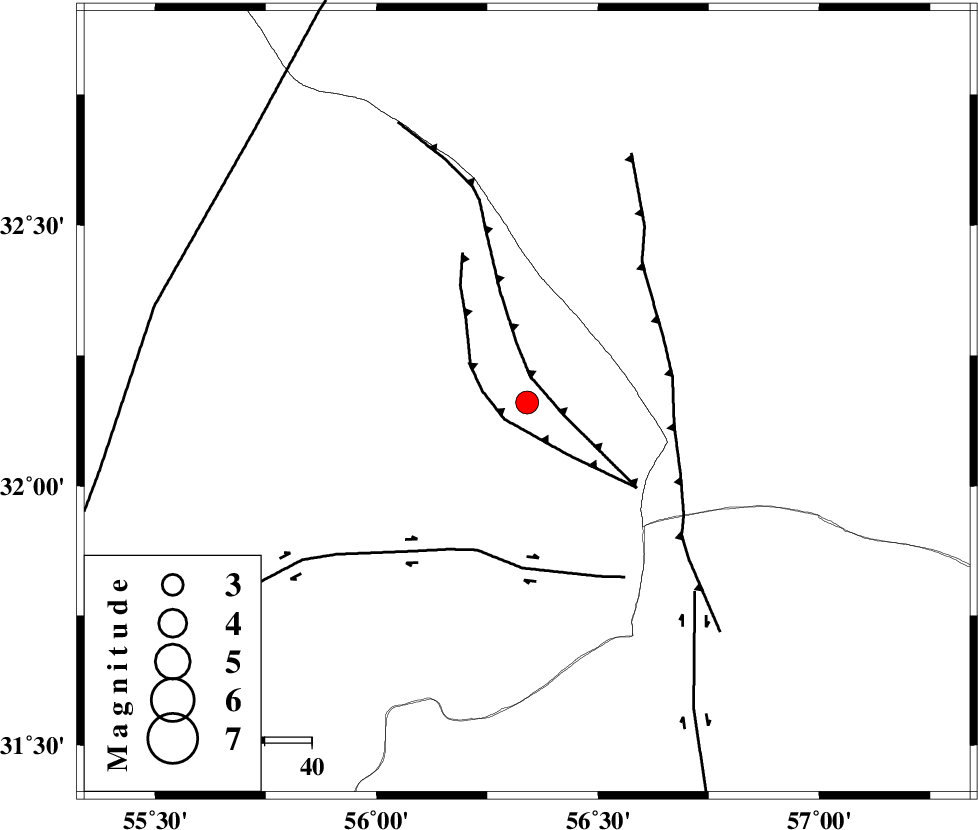

Location | Lat:32.16 Lon: 56.34 |
Region | Yazd Province, 109 km North-West of Ravar |
Nearest Cities |
|
44 km North East of Behabad, Yazd Province | |
53 km North East of Benestan, Yazd Province | |
56 km North East of Asfih, Yazd Province | |
70 km North East of Kushk, Yazd Province | |
83 km North of Kuhbanan, Kerman Province | |
Depth | 18 km |
Agency | |
Faults within 150 km: |
|
JAFARABAD_F (Length: 60 km) , Distance to epicenter: 31 km | |
KUHBANAN_F (Length: 189 km) , Distance to epicenter: 47 km | |
SARBALA_F (Length: 92 km) , Distance to epicenter: 48 km | |
Number of Phases | 5 |
RMS | 0.1 |
Number of Stations | 4 |
Error in Latitude | >1.3 km |
Error in Longitude | 3 km |
Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
87467 | IIEES | KRBR | N | 167.6 | 0.6 | 2012-12-28 19:46:51 | 2012-12-28 08:16:00 | n |
87468 | IIEES | KRBR | E | 135.2 | 0.32 | 2012-12-28 19:46:53 | 2012-12-28 08:16:00 | n |
Phase | ||||||||||||
Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
IIEES | YZKH | Z | Pg | E | 2012-12-28 19:46:04 | 0.07 | y | 167 | 279 | |||
IIEES | TABS | Z | Pg | E | 2012-12-28 19:46:06 | 0.14 | y | 180 | 24 | |||
IIEES | KRBR | Z | Pn | E | 2012-12-28 19:46:14 | -0.11 | y | 245 | 170 | |||
IIEES | KRBR | N | Sg | E | 2012-12-28 19:46:45 | 0.06 | y | 245 | 170 | |||
IIEES | SHRO | Z | Pn | E | 2012-12-28 19:46:36 | -0.21 | y | 428 | 356 |
