Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2012-12-28 21:18:34.9 |
| Date & Time (Local) | 1391/10/9 00:48:34.9 |

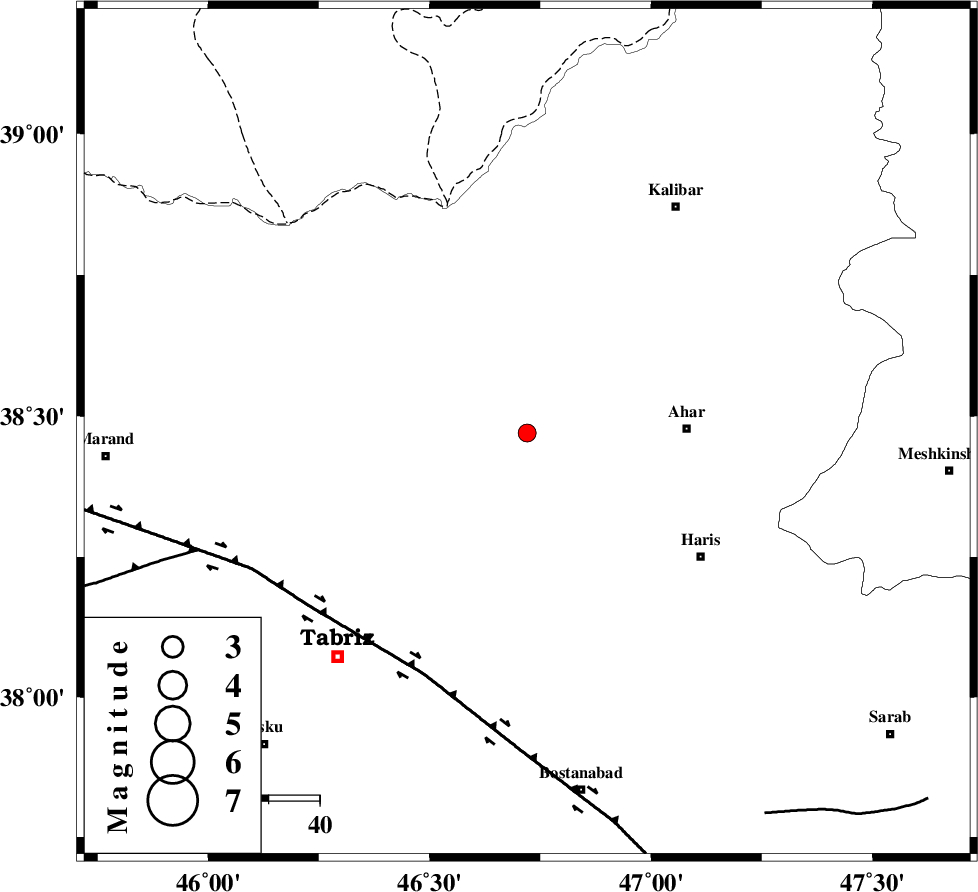

| Location | Lat:38.47 Lon: 46.72 |
| Region | Azarbaijan Sharghi Province, 32 km West of Ahar |
Nearest Cities |
|
| 8 km of Varzagan, Azarbaijan Sharghi Province | |
| 15 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 18 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 21 km North East of Sarand, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 52 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 69 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 89 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87470 | IIEES | GRMI | E | 134.1 | 0.2 | 2012-12-28 21:19:08 | 2012-12-28 11:27:00 | n |
| 87471 | IIEES | MAKU | N | 40.4 | 0.24 | 2012-12-28 21:19:34 | 2012-12-28 11:27:00 | n |
| 87472 | IIEES | MAKU | E | 43.7 | 0.32 | 2012-12-28 21:19:36 | 2012-12-28 11:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2012-12-28 21:18:53 | -0.02 | y | 110 | 69 | |||
| IIEES | MAKU | Z | Pg | E | 2012-12-28 21:19:08 | -0.12 | y | 202 | 300 | |||
| IIEES | MAKU | N | Sg | E | 2012-12-28 21:19:32 | 0.03 | y | 202 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2012-12-28 21:19:15 | 0.25 | y | 265 | 138 | |||
| IIEES | ZNJK | N | Sg | E | 2012-12-28 21:19:49 | -0.14 | y | 265 | 138 | |||
