Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2013-01-10 22:23:47.3 |
| Date & Time (Local) | 1391/10/22 01:53:47.3 |

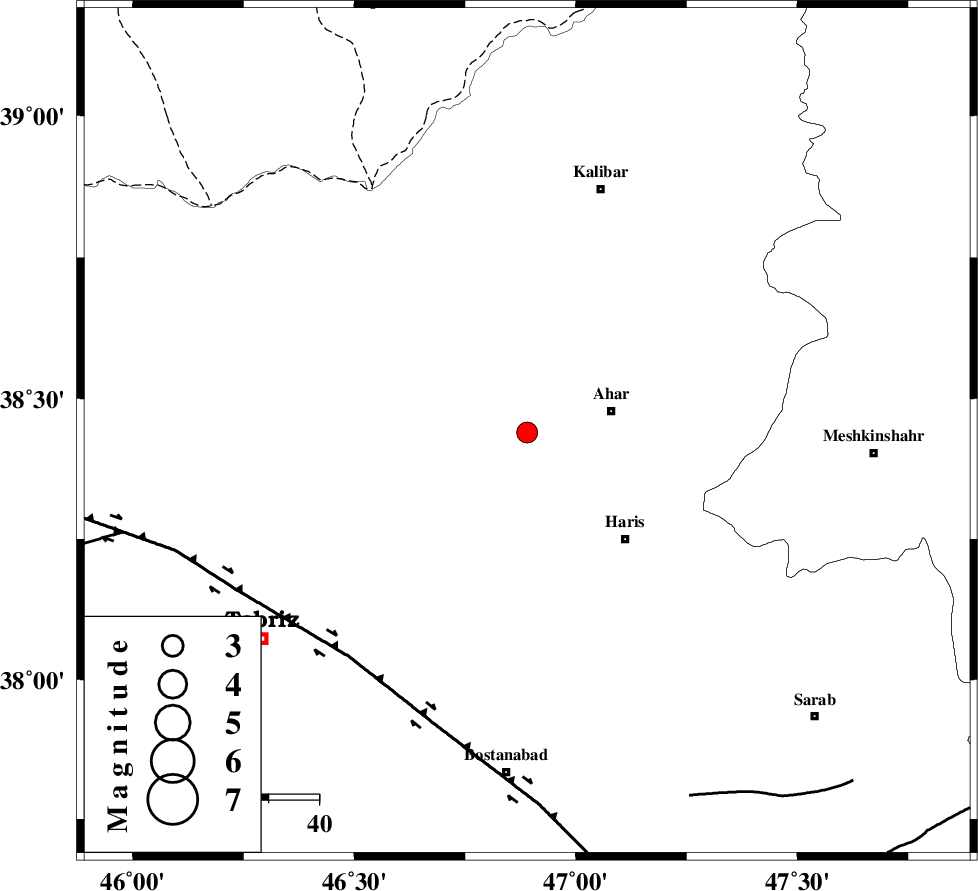

| Location | Lat:38.44 Lon: 46.89 |
| Region | Azarbaijan Sharghi Province, 17 km West of Ahar |
Nearest Cities |
|
| 12 km West of Khuniq, Azarbaijan Sharghi Province | |
| 16 km North of Nikcheh, Azarbaijan Sharghi Province | |
| 16 km South of Azghan, Azarbaijan Sharghi Province | |
| 16 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 17 km West of Ahar, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 57 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 79 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 82 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87567 | IIEES | GRMI | E | 545.5 | 0.16 | 2013-01-10 22:24:17 | 2013-01-10 11:44:00 | n |
| 87568 | IIEES | GRMI | N | 451.2 | 0.12 | 2013-01-10 22:24:19 | 2013-01-10 11:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-01-10 22:24:03 | 0.12 | y | 96.6 | 64 | |||
| IIEES | GRMI | N | Sg | E | 2013-01-10 22:24:15 | -0.07 | y | 96.6 | 64 | |||
| IIEES | MAKU | N | Pn | E | 2013-01-10 22:24:21 | -0.01 | y | 217 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-01-10 22:24:26 | -0.07 | y | 252 | 140 | |||
| IIEES | ZNJK | E | Sg | E | 2013-01-10 22:24:58 | 0.03 | y | 252 | 140 | |||
