Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2013-01-11 17:37:09.1 |
| Date & Time (Local) | 1391/10/22 21:07:09.1 |

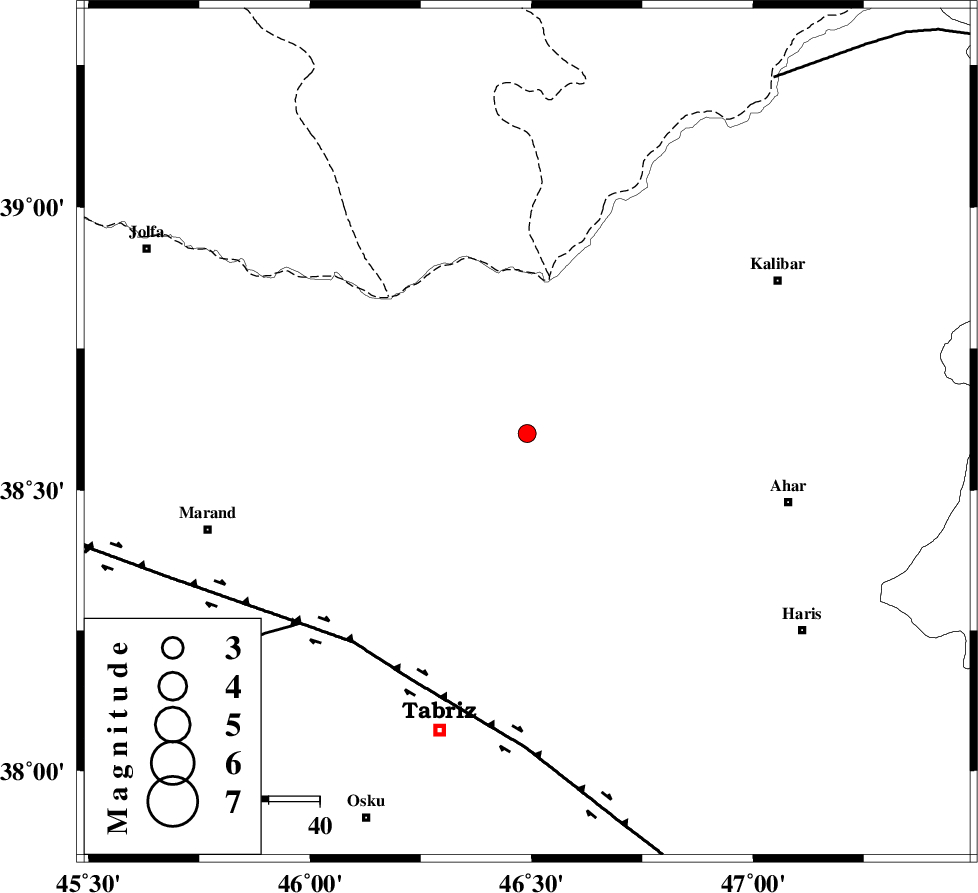

| Location | Lat:38.6 Lon: 46.49 |
| Region | Azarbaijan Sharghi Province, 53 km North-West of Ahar |
Nearest Cities |
|
| 8 km of Joshin, Azarbaijan Sharghi Province | |
| 8 km North of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 18 km North West of Varzagan, Azarbaijan Sharghi Province | |
| 24 km West of Bekrabad, Azarbaijan Sharghi Province | |
| 29 km North West of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 33 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 54 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 58 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 85 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87593 | IIEES | GRMI | E | 158 | 0.2 | 2013-01-11 17:37:45 | 2013-01-11 06:07:00 | n |
| 87594 | IIEES | GRMI | N | 108.6 | 0.2 | 2013-01-11 17:37:48 | 2013-01-11 06:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-01-11 17:37:30 | 0.22 | y | 124 | 79 | |||
| IIEES | GRMI | E | Sg | E | 2013-01-11 17:37:44 | -0.14 | y | 124 | 79 | |||
| IIEES | MAKU | N | Pn | E | 2013-01-11 17:37:37 | -0.08 | y | 177 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-01-11 17:37:51 | 0.07 | y | 289 | 137 | |||
| IIEES | ZNJK | E | Sg | E | 2013-01-11 17:38:28 | -0.06 | y | 289 | 137 | |||
