Event Specification
Magnitude |
4.6 |
| Date & Time (UTC) | 2013-01-26 15:10:49.8 |
| Date & Time (Local) | 1391/11/7 18:40:49.8 |

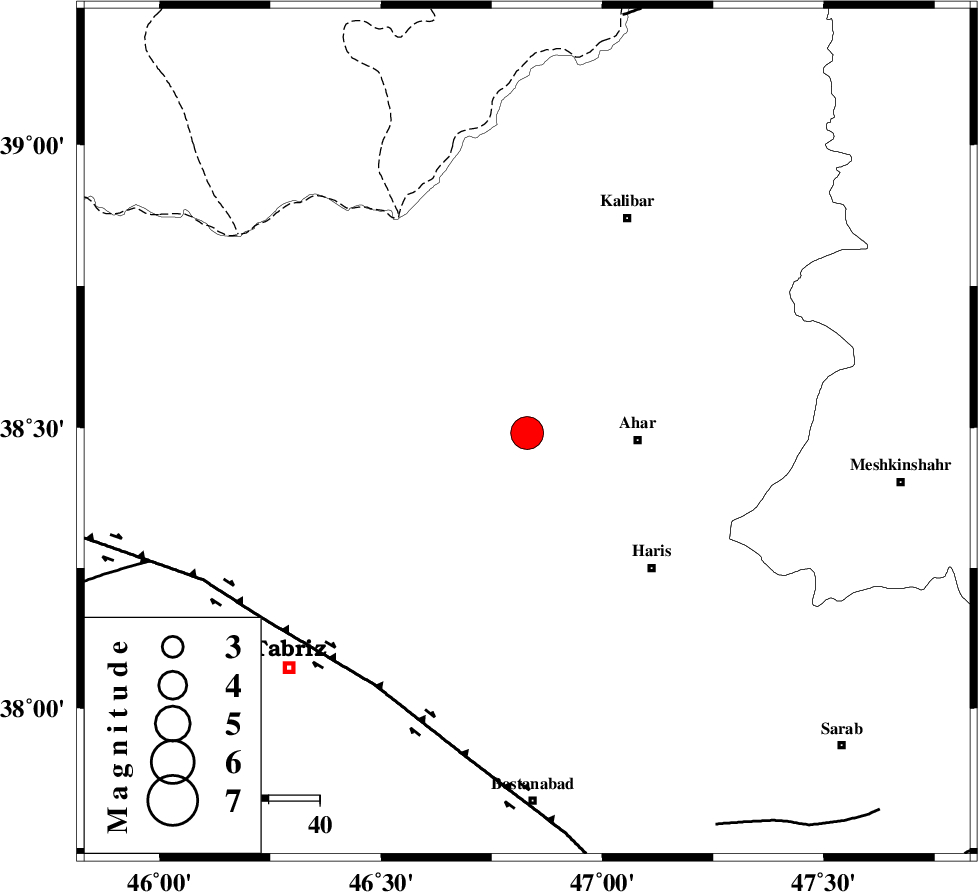

| Location | Lat:38.49 Lon: 46.83 |
| Region | Azarbaijan Sharghi Province, 22 km West of Ahar |
Nearest Cities |
|
| 10 km of Tokhmdel, Azarbaijan Sharghi Province | |
| 14 km West of Azghan, Azarbaijan Sharghi Province | |
| 16 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 17 km North East of Varzagan, Azarbaijan Sharghi Province | |
| 18 km North West of Khuniq, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 58 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 78 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 84 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >1.2 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 3.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87725 | IIEES | GRMI | N | 14487.1 | 0.16 | 2013-01-26 15:11:21 | 2013-01-26 03:43:00 | n |
| 87726 | IIEES | GRMI | E | 17001.5 | 0.2 | 2013-01-26 15:11:21 | 2013-01-26 03:43:00 | n |
| 87727 | IIEES | MAKU | N | 4735.1 | 0.6 | 2013-01-26 15:11:56 | 2013-01-26 03:43:00 | n |
| 87728 | IIEES | MAKU | E | 4375.1 | 0.48 | 2013-01-26 15:11:57 | 2013-01-26 03:43:00 | n |
| 87729 | IIEES | BJRD | N | 52.4 | 0.52 | 2013-01-26 15:14:35 | 2013-01-26 03:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-01-26 15:11:06 | 0.09 | y | 99.2 | 69 | |||
| IIEES | GRMI | N | Sg | E | 2013-01-26 15:11:19 | -0.05 | y | 99.2 | 69 | |||
| IIEES | MAKU | Z | Pn | E | 2013-01-26 15:11:23 | 0.16 | y | 209 | 298 | |||
| IIEES | MAKU | E | Sg | E | 2013-01-26 15:11:49 | -0.1 | y | 209 | 298 | |||
| IIEES | SNGE | Z | Pn | E | 2013-01-26 15:11:44 | -0.02 | y | 380 | 173 | |||
| IIEES | SNGE | N | Sg | E | 2013-01-26 15:12:36 | 0.06 | y | 380 | 173 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-01-26 15:12:11 | -0.23 | y | 598 | 151 | |||
