Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2013-01-26 15:54:25.3 |
| Date & Time (Local) | 1391/11/7 19:24:25.3 |

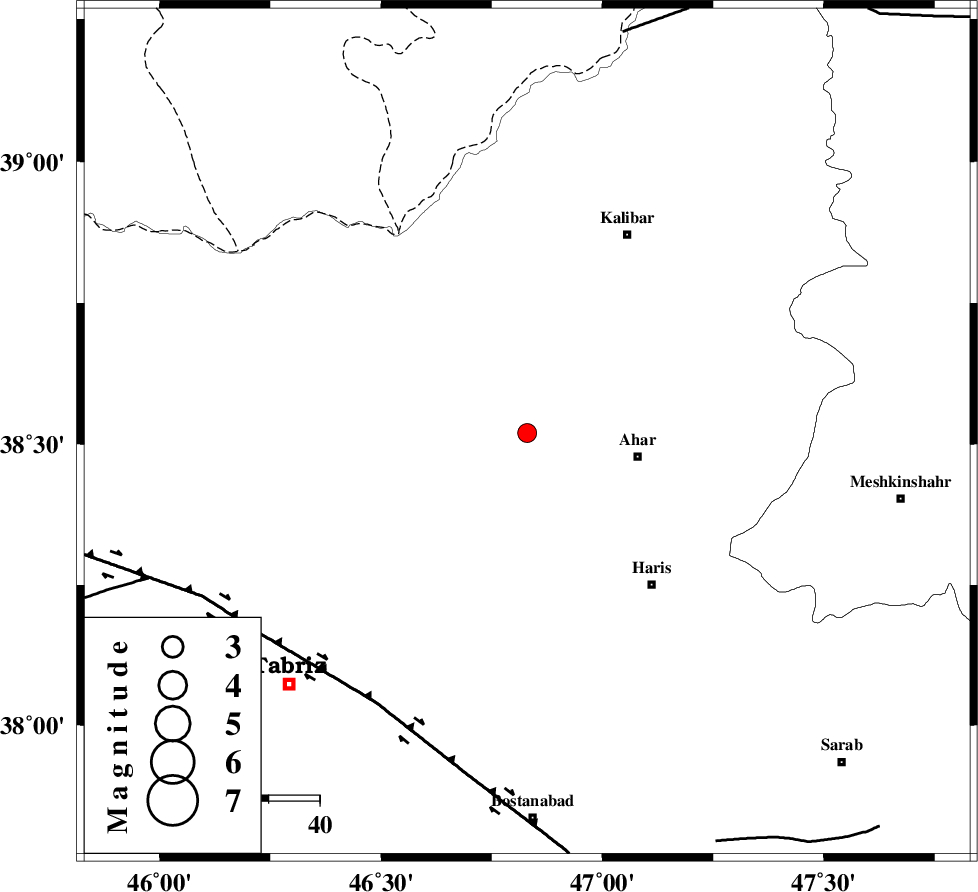

| Location | Lat:38.52 Lon: 46.83 |
| Region | Azarbaijan Sharghi Province, 22 km West of Ahar |
Nearest Cities |
|
| 6 km of Tokhmdel, Azarbaijan Sharghi Province | |
| 12 km West of Azghan, Azarbaijan Sharghi Province | |
| 13 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 18 km North East of Varzagan, Azarbaijan Sharghi Province | |
| 19 km North West of Khuniq, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 61 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 80 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 81 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87730 | IIEES | GRMI | E | 270.2 | 0.2 | 2013-01-26 15:54:55 | 2013-01-26 04:07:00 | n |
| 87731 | IIEES | GRMI | N | 235.5 | 0.36 | 2013-01-26 15:54:56 | 2013-01-26 04:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-01-26 15:54:41 | -0.09 | y | 97.9 | 70 | |||
| IIEES | GRMI | N | Sg | E | 2013-01-26 15:54:54 | 0.05 | y | 97.9 | 70 | |||
| IIEES | MAKU | Z | Pn | E | 2013-01-26 15:54:59 | 0.07 | y | 208 | 297 | |||
| IIEES | MAKU | E | Sg | E | 2013-01-26 15:55:24 | -0.03 | y | 208 | 297 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-01-26 15:55:05 | 0 | y | 262 | 141 | |||
