Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2013-01-26 22:45:18.1 |
| Date & Time (Local) | 1391/11/8 02:15:18.1 |

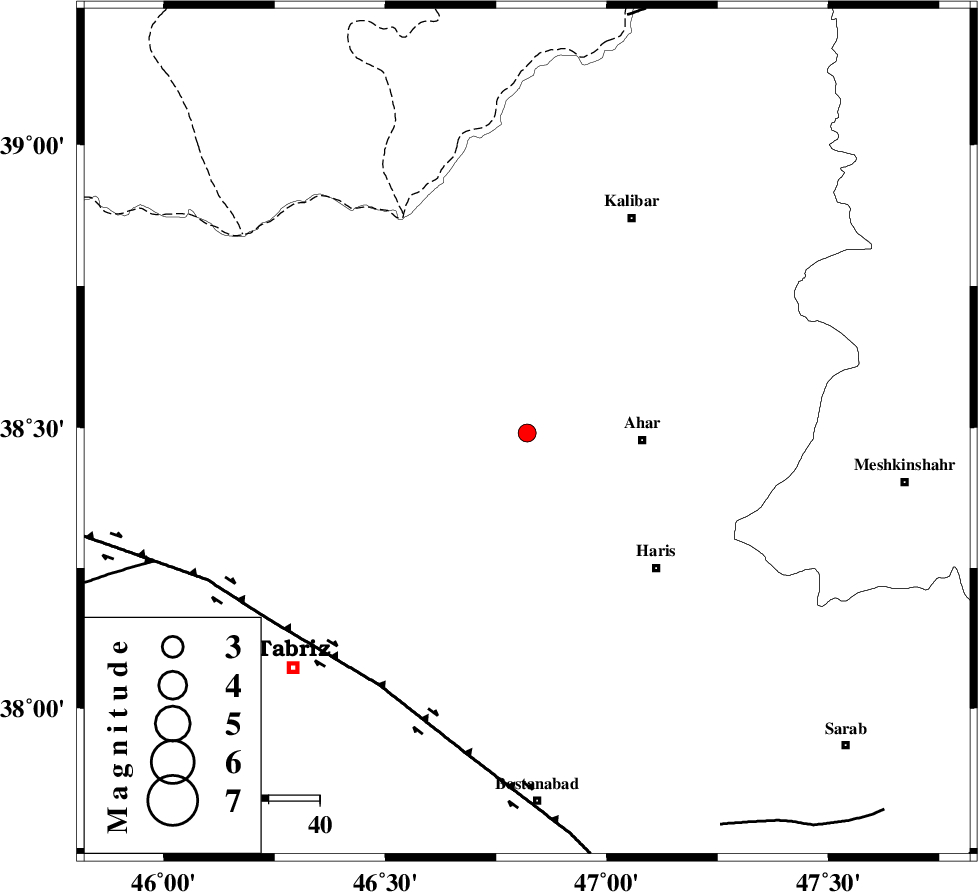

| Location | Lat:38.49 Lon: 46.82 |
| Region | Azarbaijan Sharghi Province, 22 km West of Ahar |
Nearest Cities |
|
| 10 km of Tokhmdel, Azarbaijan Sharghi Province | |
| 15 km West of Azghan, Azarbaijan Sharghi Province | |
| 16 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 16 km North East of Varzagan, Azarbaijan Sharghi Province | |
| 19 km North West of Khuniq, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 58 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 78 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 84 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 6.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87740 | IIEES | GRMI | E | 176.5 | 0.12 | 2013-01-26 22:45:48 | 2013-01-27 03:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-01-26 22:45:34 | -0.16 | y | 99.6 | 69 | |||
| IIEES | GRMI | N | Sg | E | 2013-01-26 22:45:47 | 0.11 | y | 99.6 | 69 | |||
| IIEES | MAKU | Z | Pn | E | 2013-01-26 22:45:51 | -0.03 | y | 209 | 298 | |||
| IIEES | MAKU | N | Sg | E | 2013-01-26 22:46:17 | 0.04 | y | 209 | 298 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-01-26 22:45:58 | 0.04 | y | 260 | 140 | |||
