Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2013-01-28 08:26:05.5 |
| Date & Time (Local) | 1391/11/9 11:56:05.5 |

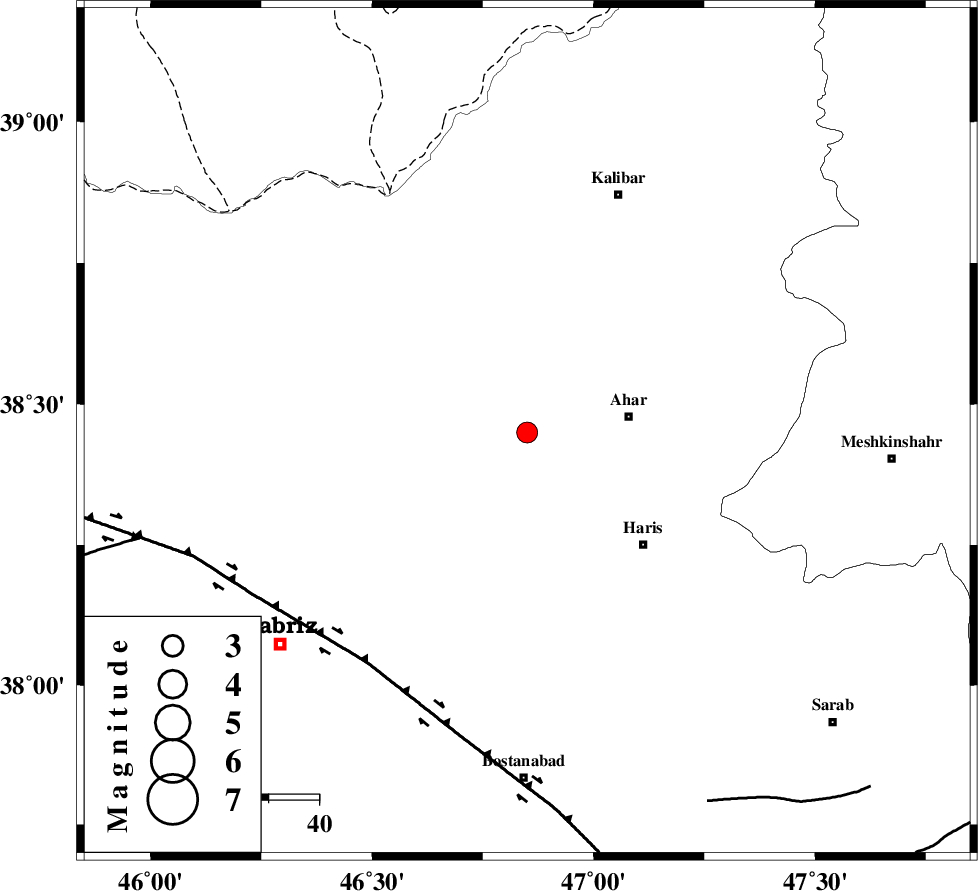

| Location | Lat:38.45 Lon: 46.85 |
| Region | Azarbaijan Sharghi Province, 21 km West of Ahar |
Nearest Cities |
|
| 14 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km North West of Khuniq, Azarbaijan Sharghi Province | |
| 17 km South of Azghan, Azarbaijan Sharghi Province | |
| 18 km North of Nikcheh, Azarbaijan Sharghi Province | |
| 19 km East of Varzagan, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 55 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 79 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 81 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 3 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87745 | IIEES | GRMI | E | 437.7 | 0.24 | 2013-01-28 08:26:36 | 2013-01-28 08:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-01-28 08:26:22 | -0.11 | y | 99.5 | 66 | |||
| IIEES | GRMI | N | Sg | E | 2013-01-28 08:26:34 | 0.07 | y | 99.5 | 66 | |||
| IIEES | MAKU | Z | Pn | E | 2013-01-28 08:26:39 | 0.05 | y | 213 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-01-28 08:26:45 | -0.05 | y | 256 | 140 | |||
| IIEES | ZNJK | E | Sg | E | 2013-01-28 08:27:18 | 0.04 | y | 256 | 140 | |||
