Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2013-01-28 11:24:56.8 |
| Date & Time (Local) | 1391/11/9 14:54:56.8 |

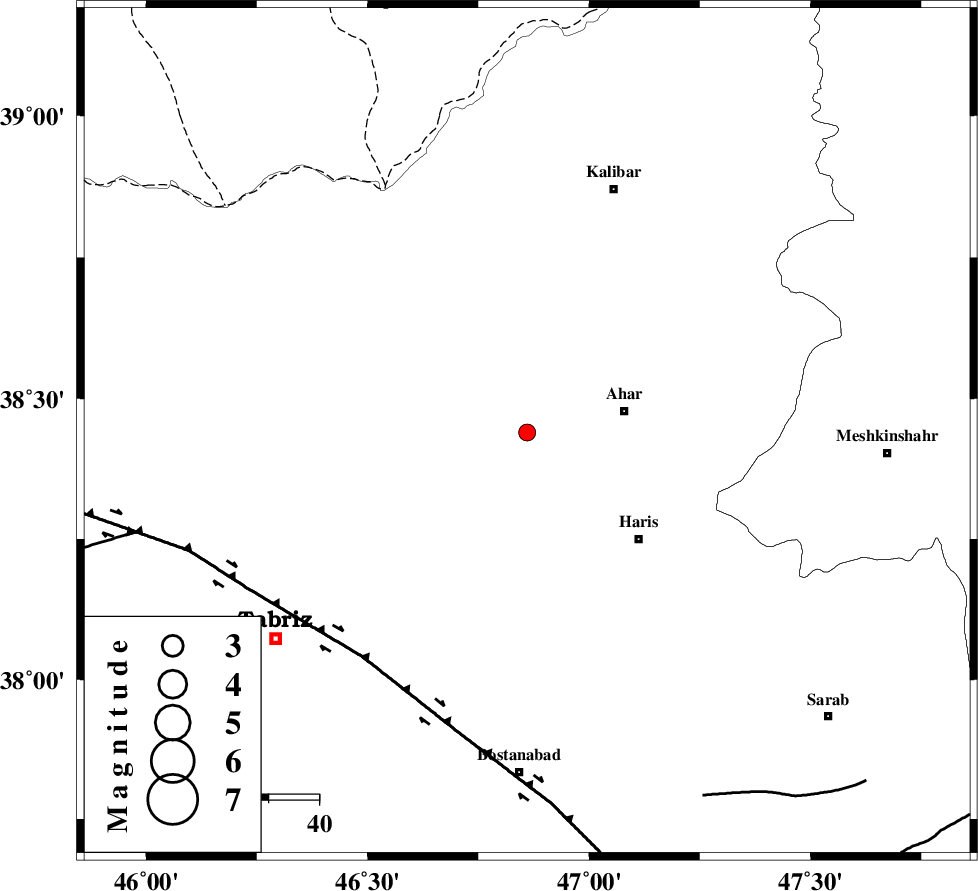

| Location | Lat:38.44 Lon: 46.86 |
| Region | Azarbaijan Sharghi Province, 20 km West of Ahar |
Nearest Cities |
|
| 15 km West of Khuniq, Azarbaijan Sharghi Province | |
| 16 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 17 km North of Nikcheh, Azarbaijan Sharghi Province | |
| 17 km South of Azghan, Azarbaijan Sharghi Province | |
| 20 km West of Ahar, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 55 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 79 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 80 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87746 | IIEES | GRMI | E | 109.5 | 0.19 | 2013-01-28 11:25:27 | 2013-01-28 11:42:00 | n |
| 87747 | IIEES | GRMI | N | 106.3 | 0.16 | 2013-01-28 11:25:28 | 2013-01-28 11:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-01-28 11:25:13 | -0.15 | y | 99 | 65 | |||
| IIEES | GRMI | N | Sg | E | 2013-01-28 11:25:26 | 0.08 | y | 99 | 65 | |||
| IIEES | MAKU | Z | Pn | E | 2013-01-28 11:25:31 | -0.01 | y | 214 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-01-28 11:25:36 | 0.14 | y | 255 | 140 | |||
| IIEES | ZNJK | N | Sg | E | 2013-01-28 11:26:08 | -0.07 | y | 255 | 140 | |||
