Event Specification
Magnitude |
2.1 |
| Date & Time (UTC) | 2013-01-28 14:40:42.4 |
| Date & Time (Local) | 1391/11/9 18:10:42.4 |

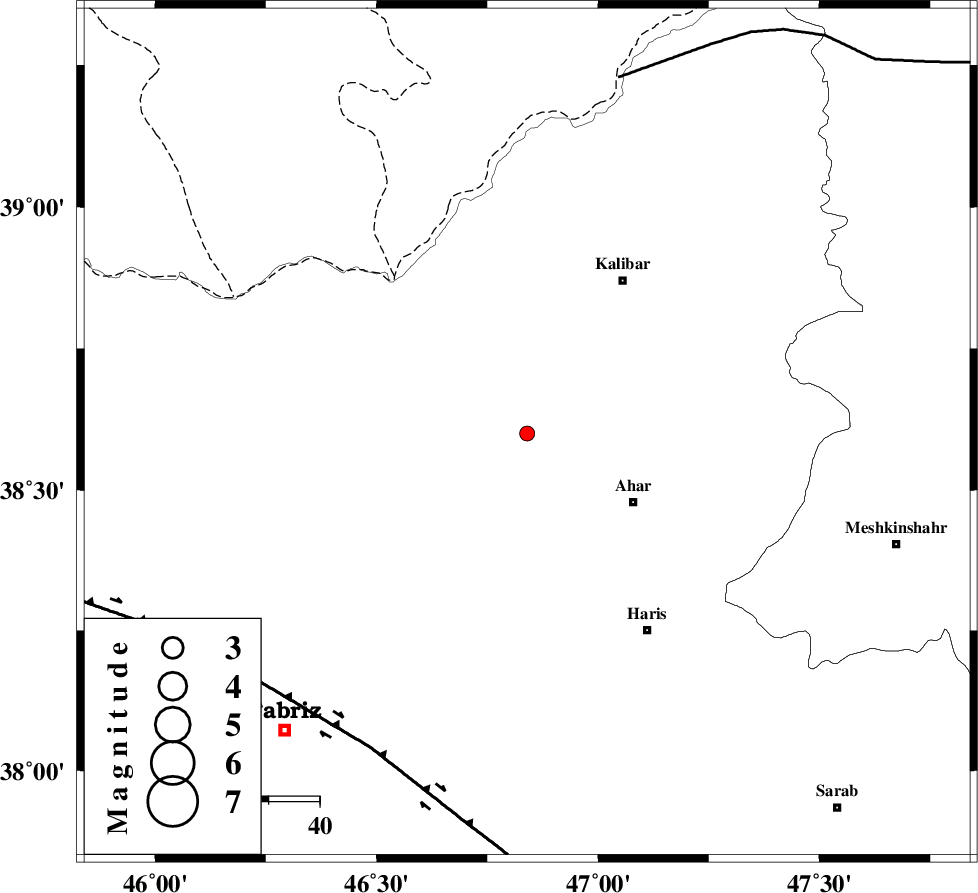

| Location | Lat:38.6 Lon: 46.84 |
| Region | Azarbaijan Sharghi Province, 25 km North-West of Ahar |
Nearest Cities |
|
| 3 km North of Tokhmdel, Azarbaijan Sharghi Province | |
| 7 km of Bekrabad, Azarbaijan Sharghi Province | |
| 9 km North West of Azghan, Azarbaijan Sharghi Province | |
| 22 km North East of Varzagan, Azarbaijan Sharghi Province | |
| 24 km North East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 69 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 72 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 84 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87748 | IIEES | GRMI | N | 65.3 | 0.24 | 2013-01-28 14:41:12 | 2013-01-28 03:00:00 | n |
| 87749 | IIEES | GRMI | E | 68.8 | 0.2 | 2013-01-28 14:41:14 | 2013-01-28 03:00:00 | n |
| 87750 | IIEES | MAKU | N | 16.9 | 0.64 | 2013-01-28 14:41:41 | 2013-01-28 03:00:00 | n |
| 87751 | IIEES | MAKU | E | 16.7 | 0.28 | 2013-01-28 14:41:46 | 2013-01-28 03:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-01-28 14:40:58 | -0.08 | y | 95 | 75 | |||
| IIEES | GRMI | N | Sg | E | 2013-01-28 14:41:10 | 0.04 | y | 95 | 75 | |||
| IIEES | MAKU | Z | Pn | E | 2013-01-28 14:41:15 | 0.06 | y | 205 | 295 | |||
| IIEES | MAKU | N | Sg | E | 2013-01-28 14:41:40 | -0.02 | y | 205 | 295 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-01-28 14:41:23 | 0 | y | 269 | 142 | |||
