Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2013-01-28 21:56:56.2 |
| Date & Time (Local) | 1391/11/10 01:26:56.2 |

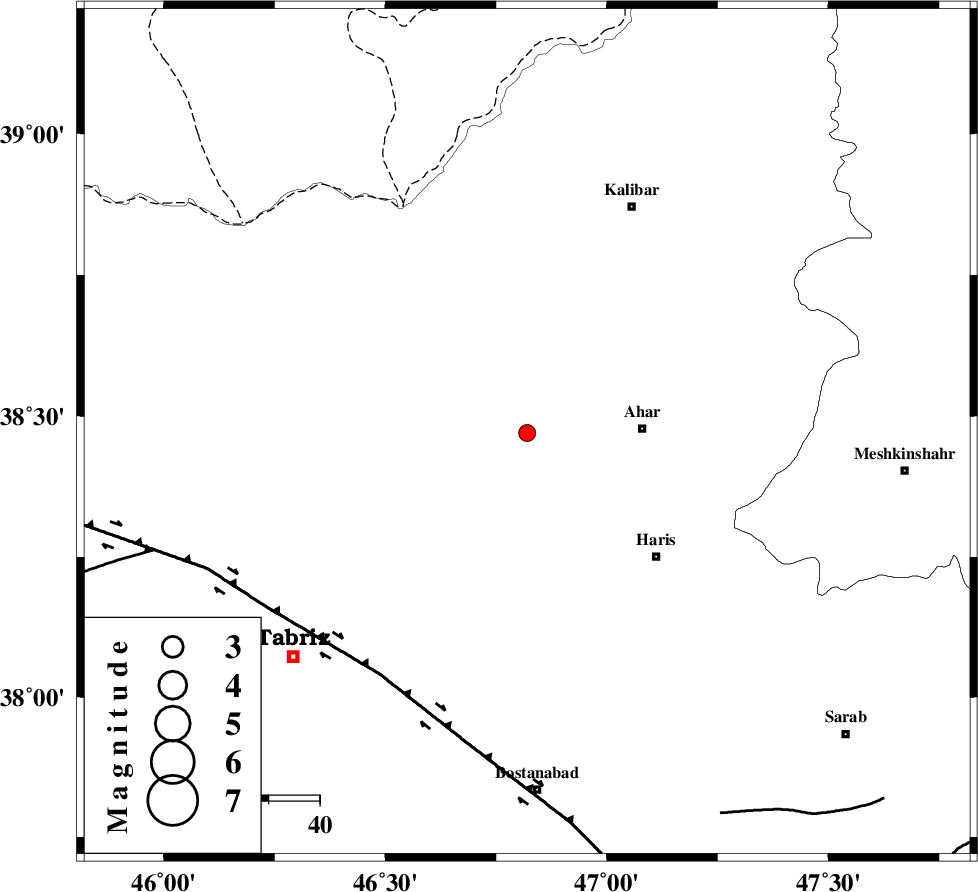

| Location | Lat:38.47 Lon: 46.82 |
| Region | Azarbaijan Sharghi Province, 23 km West of Ahar |
Nearest Cities |
|
| 12 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km South West of Azghan, Azarbaijan Sharghi Province | |
| 16 km East of Varzagan, Azarbaijan Sharghi Province | |
| 18 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 19 km North West of Khuniq, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 56 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 77 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 84 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.9 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87755 | IIEES | GRMI | E | 146.7 | 0.2 | 2013-01-28 21:57:27 | 2013-01-28 11:24:00 | n |
| 87756 | IIEES | GRMI | N | 92 | 0.24 | 2013-01-28 21:57:28 | 2013-01-28 11:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-01-28 21:57:13 | 0.02 | y | 101 | 67 | |||
| IIEES | GRMI | N | Sg | E | 2013-01-28 21:57:26 | 0 | y | 101 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2013-01-28 21:57:29 | -0.15 | y | 210 | 299 | |||
| IIEES | MAKU | E | Sg | E | 2013-01-28 21:57:56 | 0.09 | y | 210 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-01-28 21:57:35 | 0.04 | y | 258 | 140 | |||
