Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2013-02-10 03:45:04.6 |
| Date & Time (Local) | 1391/11/22 07:15:04.6 |

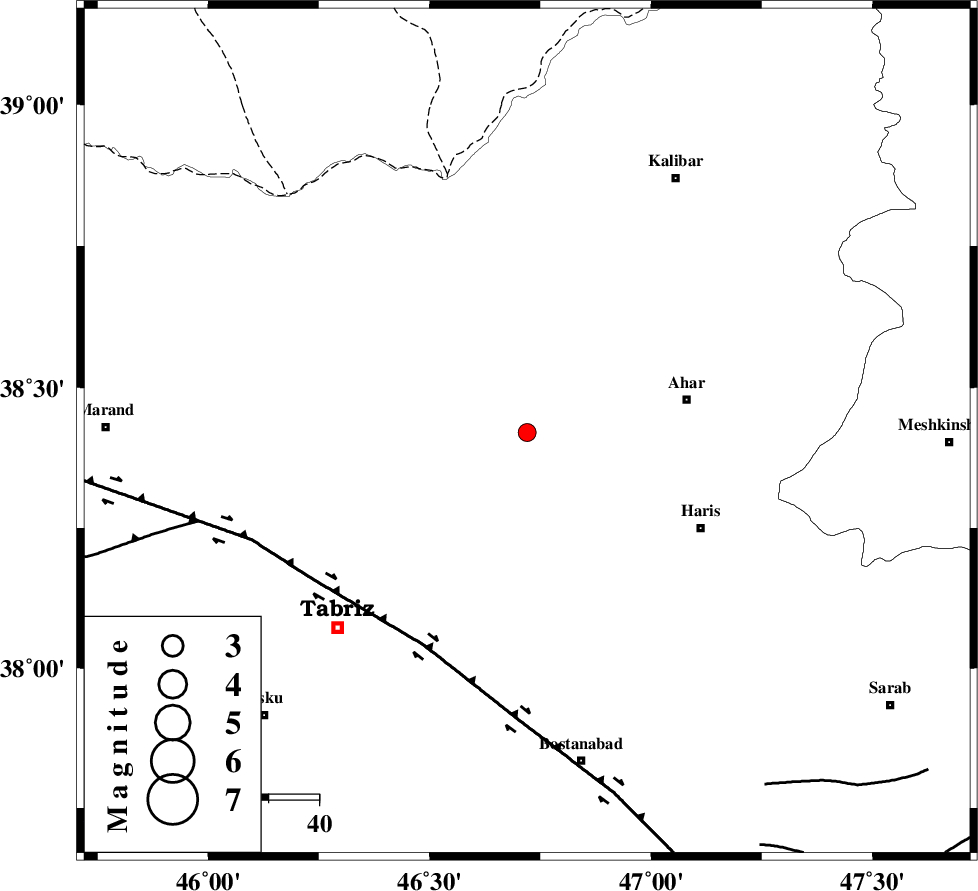

| Location | Lat:38.42 Lon: 46.72 |
| Region | Azarbaijan Sharghi Province, 32 km West of Ahar |
Nearest Cities |
|
| 10 km of Varzagan, Azarbaijan Sharghi Province | |
| 17 km North East of Sarand, Azarbaijan Sharghi Province | |
| 19 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 20 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 23 km North West of Nikcheh, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 47 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 67 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 84 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87845 | IIEES | GRMI | N | 170.4 | 0.24 | 2013-02-10 03:45:39 | 2013-02-10 04:05:00 | n |
| 87846 | IIEES | GRMI | E | 170.5 | 0.2 | 2013-02-10 03:45:39 | 2013-02-10 04:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-02-10 03:45:23 | 0.18 | y | 111 | 67 | |||
| IIEES | GRMI | N | Sg | E | 2013-02-10 03:45:36 | -0.11 | y | 111 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2013-02-10 03:45:38 | 0.1 | y | 205 | 301 | |||
| IIEES | MAKU | E | Sg | E | 2013-02-10 03:46:02 | -0.08 | y | 205 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-02-10 03:45:44 | -0.09 | y | 260 | 138 | |||
