Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2013-02-10 17:39:22.4 |
| Date & Time (Local) | 1391/11/22 21:09:22.4 |

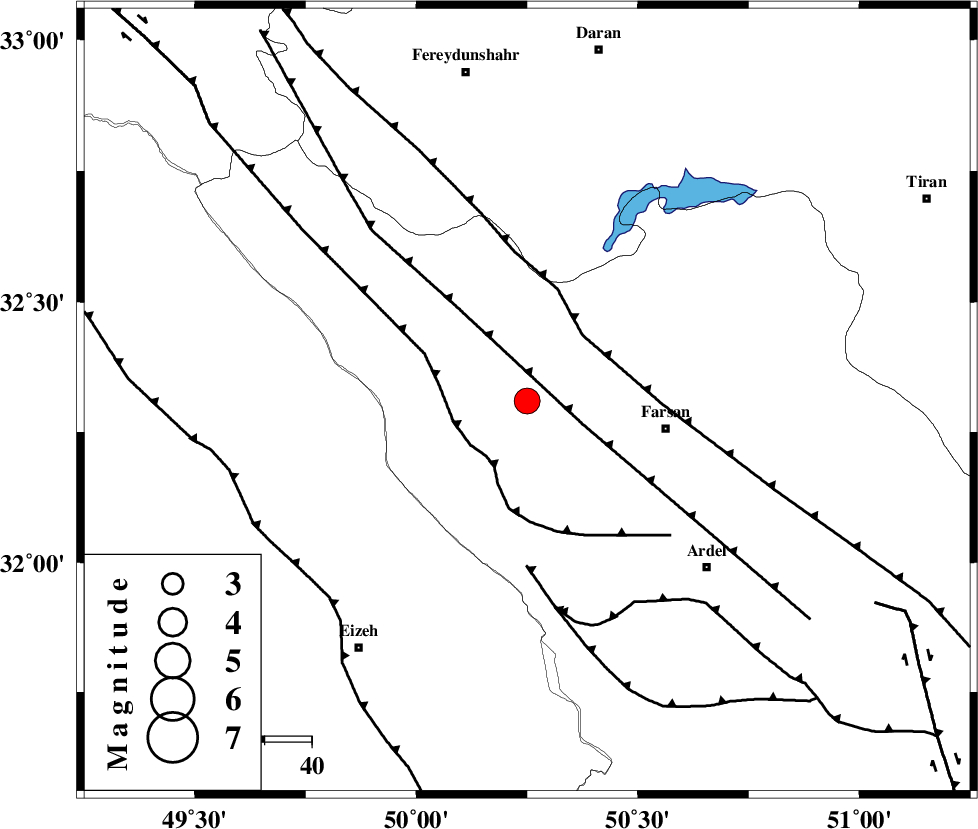

| Location | Lat:32.31 Lon: 50.25 |
| Region | Chaharmahal Bakhtiari Province, 21 km South-East of Chelgard |
Nearest Cities |
|
| 21 km South East of Chelgard, Chaharmahal Bakhtiari Province | |
| 22 km West of Babaheydar, Chaharmahal Bakhtiari Province | |
| 27 km South of Kukanak, Esfahan Province | |
| 30 km North West of Farsan, Chaharmahal Bakhtiari Province | |
| 31 km West of Haruni, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 13 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 15 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 18 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87849 | IIEES | SHGR | N | 1423.8 | 0.56 | 2013-02-10 17:40:06 | 2013-02-10 06:04:00 | n |
| 87850 | IIEES | SHGR | E | 1287.8 | 0.52 | 2013-02-10 17:40:09 | 2013-02-10 06:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2013-02-10 17:39:45 | -0.12 | y | 139 | 261 | |||
| IIEES | SHGR | N | Sg | E | 2013-02-10 17:40:02 | 0.07 | y | 139 | 261 | |||
| IIEES | KHMZ | Z | Pg | E | 2013-02-10 17:39:48 | -0.12 | y | 161 | 350 | |||
| IIEES | KHMZ | E | Sg | E | 2013-02-10 17:40:08 | -0.03 | y | 161 | 350 | |||
| IIEES | ASAO | Z | Pn | E | 2013-02-10 17:40:01 | 0.22 | y | 249 | 355 | |||
| IIEES | YZKH | Z | Pn | E | 2013-02-10 17:40:20 | -0.02 | y | 408 | 88 | |||
