Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2013-02-20 10:36:52.9 |
| Date & Time (Local) | 1391/12/2 14:06:52.9 |

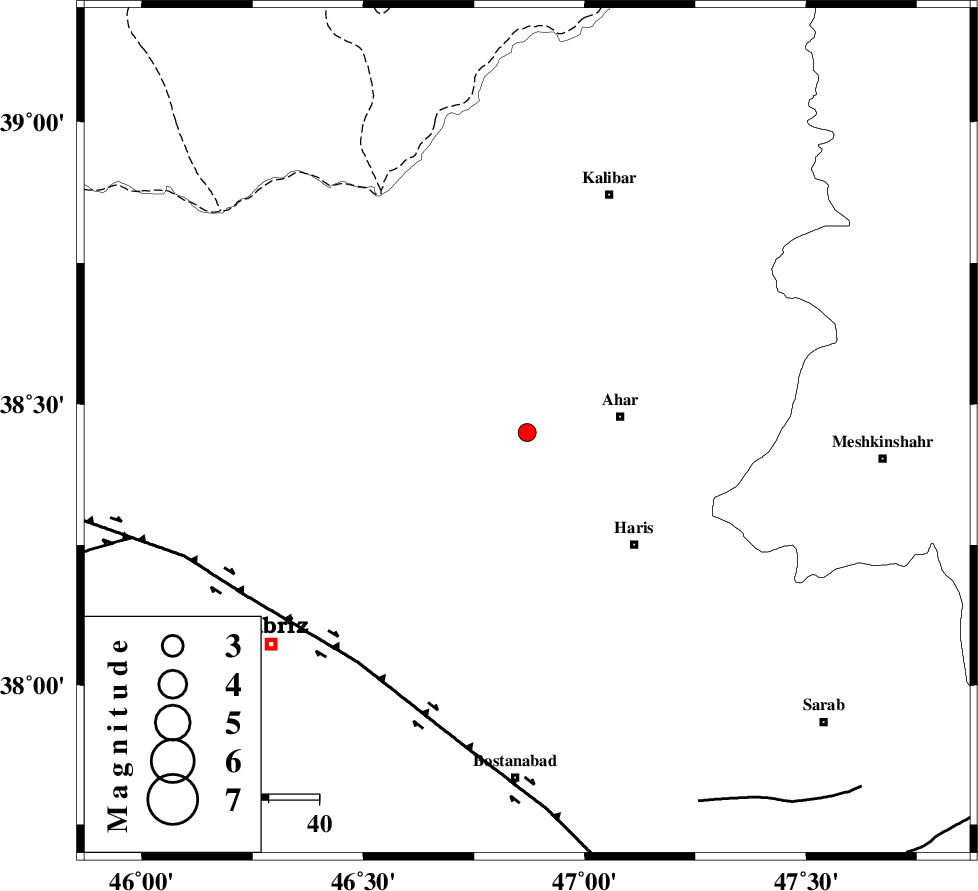

| Location | Lat:38.45 Lon: 46.87 |
| Region | Azarbaijan Sharghi Province, 18 km West of Ahar |
Nearest Cities |
|
| 14 km North West of Khuniq, Azarbaijan Sharghi Province | |
| 15 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km South of Azghan, Azarbaijan Sharghi Province | |
| 17 km North of Nikcheh, Azarbaijan Sharghi Province | |
| 19 km West of Ahar, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 56 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 80 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 81 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87979 | IIEES | GRMI | E | 193.7 | 0.32 | 2013-02-20 10:37:26 | 2013-02-20 11:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-02-20 10:37:09 | -0.17 | y | 97.5 | 66 | |||
| IIEES | GRMI | N | Sg | E | 2013-02-20 10:37:21 | 0.09 | y | 97.5 | 66 | |||
| IIEES | MAKU | Z | Pn | E | 2013-02-20 10:37:27 | 0.24 | y | 215 | 298 | |||
| IIEES | MAKU | E | Sg | E | 2013-02-20 10:37:53 | -0.13 | y | 215 | 298 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-02-20 10:37:32 | -0.03 | y | 255 | 140 | |||
