Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2013-02-22 06:45:30.0 |
| Date & Time (Local) | 1391/12/4 10:15:30.0 |

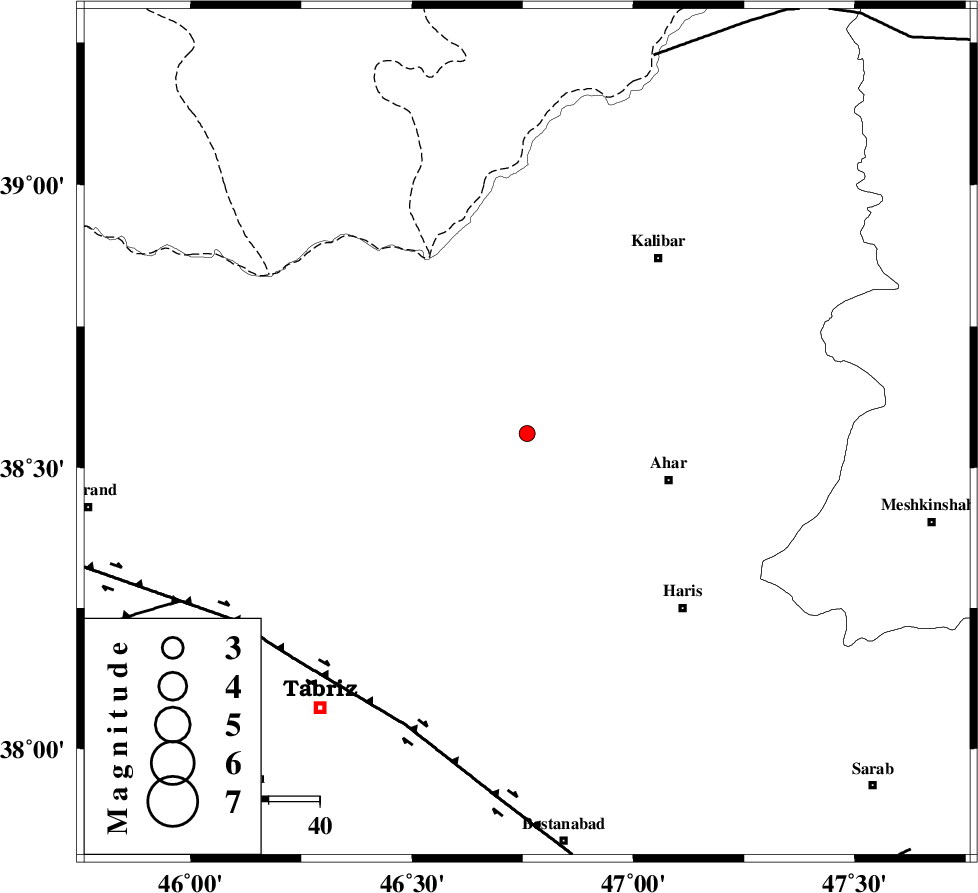

| Location | Lat:38.56 Lon: 46.76 |
| Region | Azarbaijan Sharghi Province, 29 km West of Ahar |
Nearest Cities |
|
| 5 km of Tokhmdel, Azarbaijan Sharghi Province | |
| 8 km of Bekrabad, Azarbaijan Sharghi Province | |
| 14 km North East of Varzagan, Azarbaijan Sharghi Province | |
| 16 km West of Azghan, Azarbaijan Sharghi Province | |
| 16 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 62 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 76 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 78 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 87998 | IIEES | MAKU | N | 27.1 | 0.32 | 2013-02-22 06:46:28 | 2013-02-22 09:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-02-22 06:45:47 | -0.11 | y | 103 | 74 | |||
| IIEES | GRMI | N | Sg | E | 2013-02-22 06:46:00 | 0.09 | y | 103 | 74 | |||
| IIEES | MAKU | Z | Pn | E | 2013-02-22 06:46:02 | 0.05 | y | 200 | 297 | |||
| IIEES | MAKU | N | Sg | E | 2013-02-22 06:46:27 | -0.02 | y | 200 | 297 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-02-22 06:46:11 | -0.02 | y | 270 | 140 | |||
