Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2013-02-23 23:55:02.8 |
| Date & Time (Local) | 1391/12/6 03:25:02.8 |

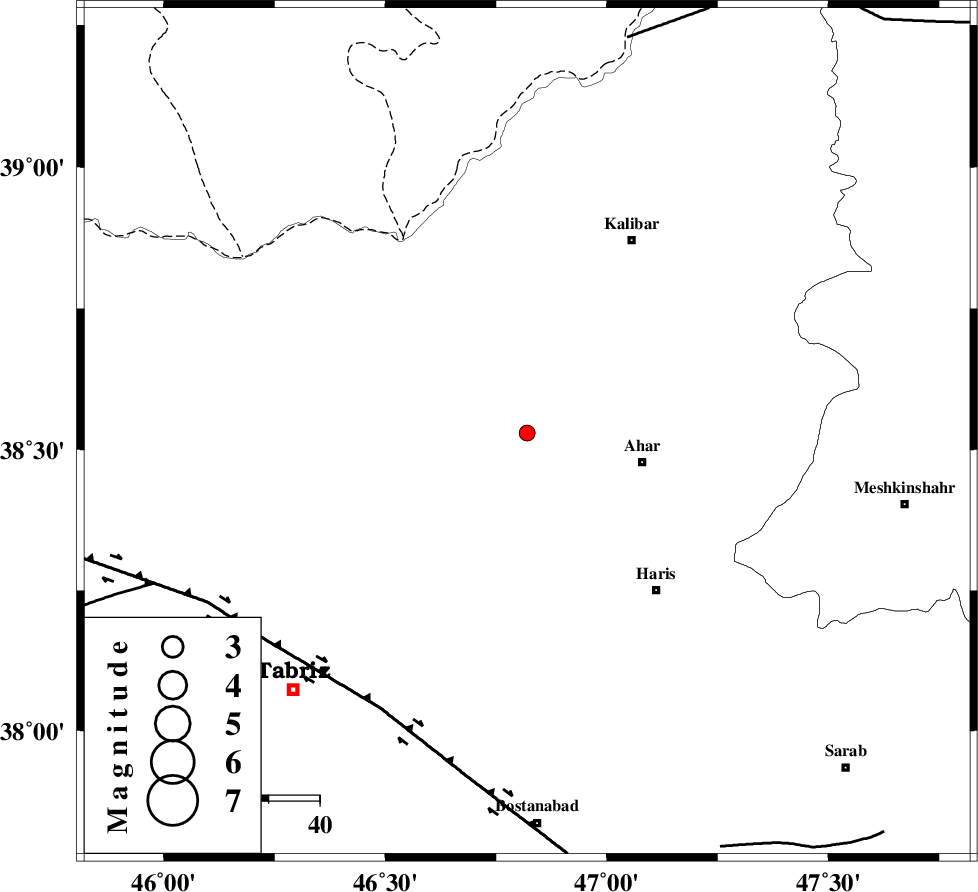

| Location | Lat:38.53 Lon: 46.82 |
| Region | Azarbaijan Sharghi Province, 23 km West of Ahar |
Nearest Cities |
|
| 5 km of Tokhmdel, Azarbaijan Sharghi Province | |
| 12 km of Bekrabad, Azarbaijan Sharghi Province | |
| 12 km West of Azghan, Azarbaijan Sharghi Province | |
| 17 km North East of Varzagan, Azarbaijan Sharghi Province | |
| 21 km North West of Khuniq, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 62 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 79 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 80 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >5.5 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88009 | IIEES | GRMI | N | 93.8 | 0.16 | 2013-02-23 23:55:33 | 2013-02-24 12:11:00 | n |
| 88010 | IIEES | GRMI | E | 100.9 | 0.11 | 2013-02-23 23:55:35 | 2013-02-24 12:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-02-23 23:55:19 | -0.05 | y | 98.3 | 71 | |||
| IIEES | GRMI | N | Sg | E | 2013-02-23 23:55:31 | 0.01 | y | 98.3 | 71 | |||
| IIEES | MAKU | Z | Pn | E | 2013-02-23 23:55:36 | 0.32 | y | 207 | 297 | |||
| IIEES | MAKU | N | Sg | E | 2013-02-23 23:56:01 | -0.2 | y | 207 | 297 | |||
| IIEES | ZNJK | E | Pn | E | 2013-02-23 23:55:43 | -0.09 | y | 263 | 141 | |||
