Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2013-03-02 17:50:12.0 |
| Date & Time (Local) | 1391/12/12 21:20:12.0 |

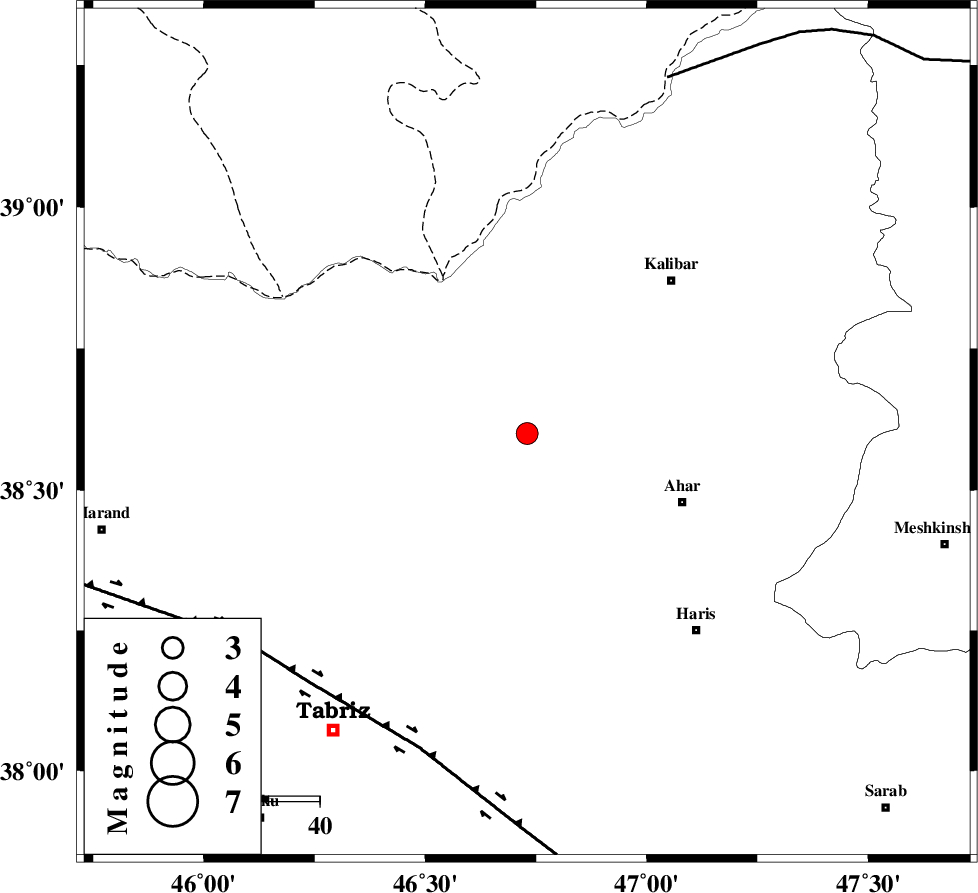

| Location | Lat:38.6 Lon: 46.73 |
| Region | Azarbaijan Sharghi Province, 33 km North-West of Ahar |
Nearest Cities |
|
| 5 km of Bekrabad, Azarbaijan Sharghi Province | |
| 8 km North of Tokhmdel, Azarbaijan Sharghi Province | |
| 14 km North East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 16 km North of Varzagan, Azarbaijan Sharghi Province | |
| 18 km North West of Azghan, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 65 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 75 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 75 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >10.3 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 17.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88064 | IIEES | MAKU | N | 169.1 | 0.4 | 2013-03-02 17:51:11 | 2013-03-02 06:18:00 | n |
| 88065 | IIEES | MAKU | E | 183 | 0.36 | 2013-03-02 17:51:14 | 2013-03-02 06:18:00 | n |
| 88066 | IIEES | BJRD | E | 1.7 | 0.36 | 2013-03-02 17:52:29 | 2013-03-02 06:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2013-03-02 17:50:44 | -0.03 | y | 197 | 296 | |||
| IIEES | MAKU | N | Sg | E | 2013-03-02 17:51:08 | 0.02 | y | 197 | 296 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-03-02 17:50:54 | 0.02 | y | 275 | 141 | |||
| IIEES | SNGE | Z | Pn | E | 2013-03-02 17:51:08 | -0.01 | y | 393 | 172 | |||
