Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2013-03-02 17:32:44.1 |
| Date & Time (Local) | 1391/12/12 21:02:44.1 |

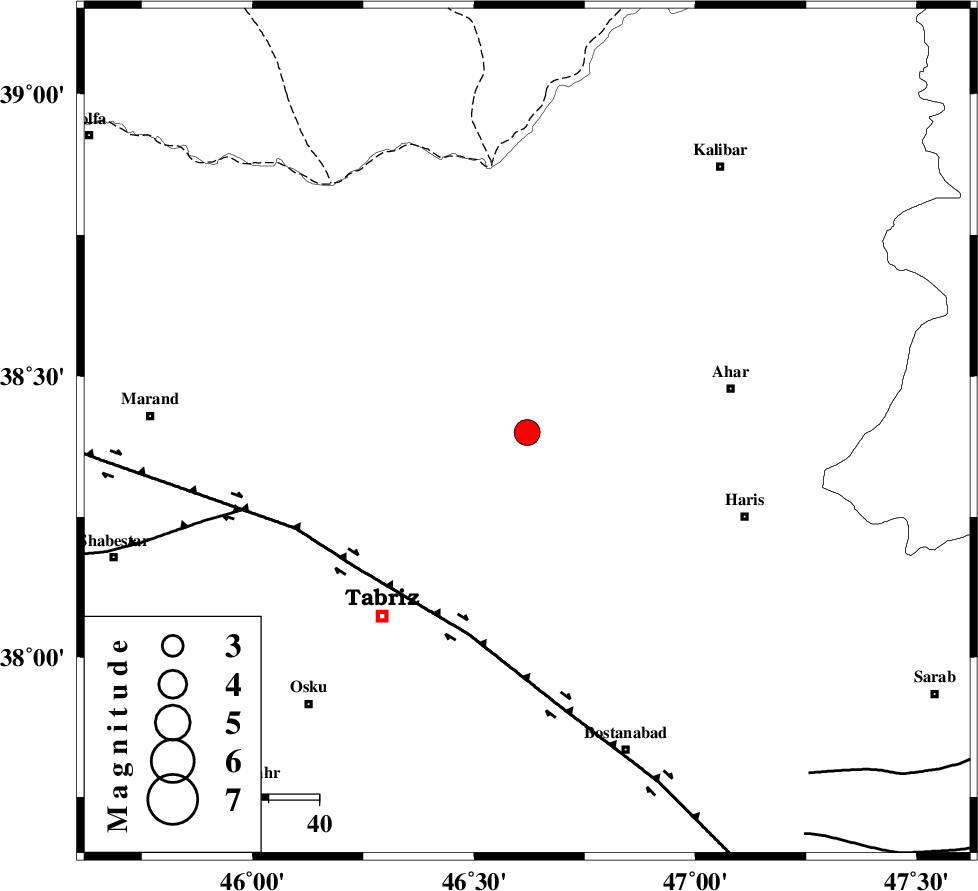

| Location | Lat:38.4 Lon: 46.62 |
| Region | Azarbaijan Sharghi Province, 41 km West of Ahar |
Nearest Cities |
|
| 9 km of Varzagan, Azarbaijan Sharghi Province | |
| 12 km North of Sarand, Azarbaijan Sharghi Province | |
| 19 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 26 km North of Khvajeh, Azarbaijan Sharghi Province | |
| 26 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 42 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 58 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 87 km | |
| Number of Phases | 5 |
| RMS | 0.3 |
| Number of Stations | 3 |
| Error in Latitude | >13.6 km |
| Error in Longitude | 14.8 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88067 | IIEES | MAKU | N | 489.6 | 0.52 | 2013-03-02 17:33:42 | 2013-03-02 06:35:00 | n |
| 88068 | IIEES | MAKU | E | 564.8 | 0.32 | 2013-03-02 17:33:44 | 2013-03-02 06:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pn | E | 2013-03-02 17:33:17 | 0.57 | y | 199 | 303 | |||
| IIEES | MAKU | N | Sg | E | 2013-03-02 17:33:40 | -0.43 | y | 199 | 303 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-03-02 17:33:24 | -0.11 | y | 265 | 136 | |||
| IIEES | ZNJK | N | Sg | E | 2013-03-02 17:33:58 | -0.19 | y | 265 | 136 | |||
| IIEES | SNGE | Z | Pn | E | 2013-03-02 17:33:38 | 0.19 | y | 373 | 170 | |||
