Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2013-03-10 04:11:14.3 |
| Date & Time (Local) | 1391/12/20 07:41:14.3 |

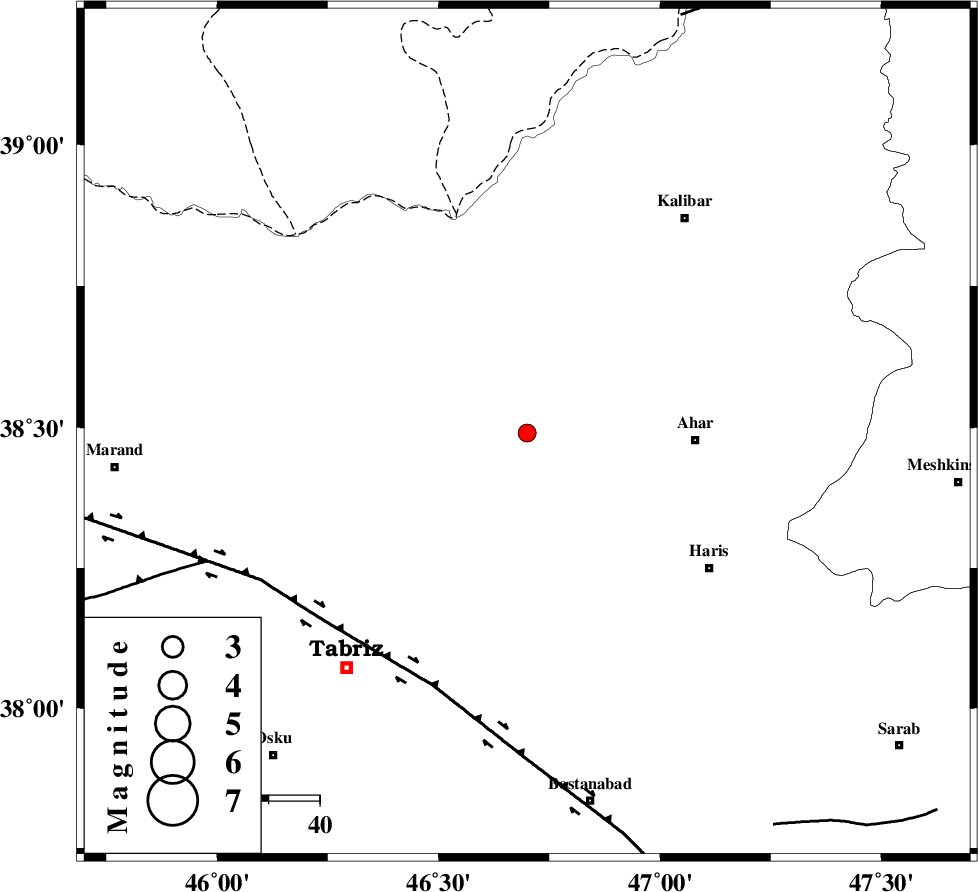

| Location | Lat:38.49 Lon: 46.7 |
| Region | Azarbaijan Sharghi Province, 33 km West of Ahar |
Nearest Cities |
|
| 6 km North of Varzagan, Azarbaijan Sharghi Province | |
| 14 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 14 km West of Tokhmdel, Azarbaijan Sharghi Province | |
| 16 km South of Bekrabad, Azarbaijan Sharghi Province | |
| 23 km North of Sarand, Azarbaijan Sharghi Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 53 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 68 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 87 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >9.9 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 16.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88162 | IIEES | GRMI | N | 169.7 | 0.16 | 2013-03-10 04:11:47 | 2013-03-10 04:23:00 | n |
| 88163 | IIEES | GRMI | E | 171.5 | 0.12 | 2013-03-10 04:11:49 | 2013-03-10 04:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-03-10 04:11:33 | 0.17 | y | 110 | 71 | |||
| IIEES | GRMI | N | Sg | E | 2013-03-10 04:11:46 | -0.11 | y | 110 | 71 | |||
| IIEES | MAKU | Z | Pg | E | 2013-03-10 04:11:47 | 0.08 | y | 199 | 299 | |||
| IIEES | MAKU | N | Sg | E | 2013-03-10 04:12:11 | -0.08 | y | 199 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-03-10 04:11:55 | -0.06 | y | 268 | 138 | |||
