Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2013-03-12 19:30:51.2 |
| Date & Time (Local) | 1391/12/22 23:00:51.2 |

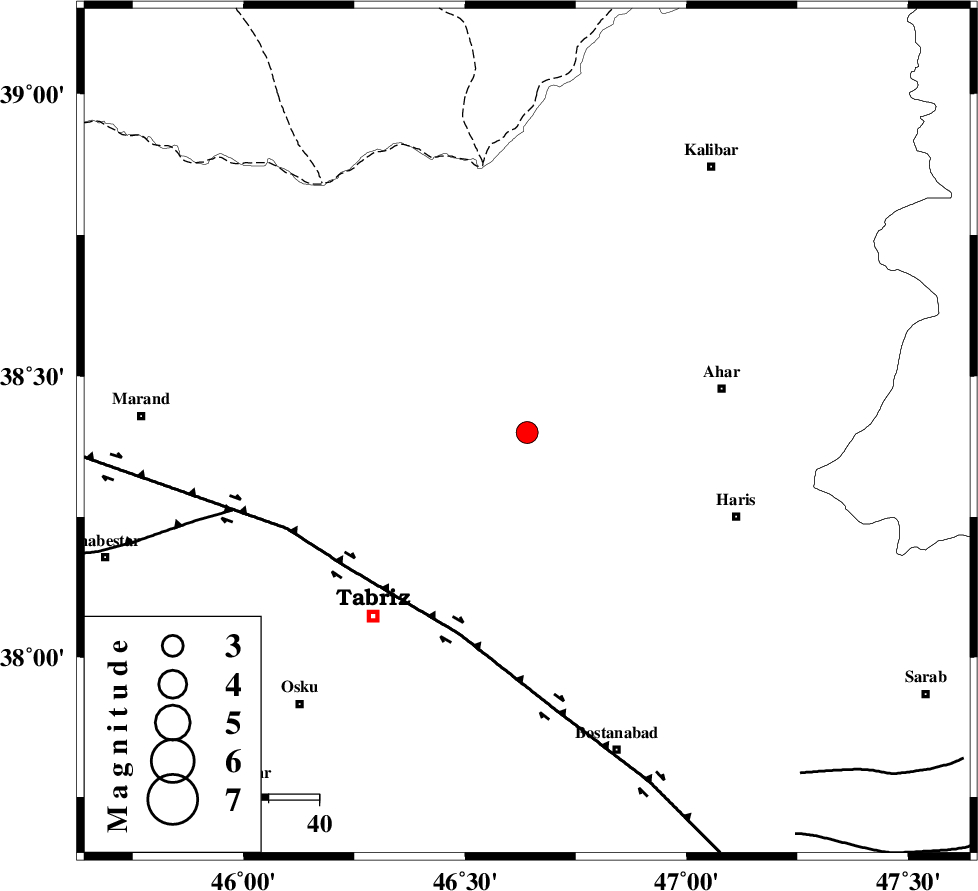

| Location | Lat:38.4 Lon: 46.64 |
| Region | Azarbaijan Sharghi Province, 40 km West of Ahar |
Nearest Cities |
|
| 9 km of Varzagan, Azarbaijan Sharghi Province | |
| 12 km North of Sarand, Azarbaijan Sharghi Province | |
| 19 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 25 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 26 km North of Khvajeh, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 42 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 60 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 86 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88191 | IIEES | MAKU | E | 183.3 | 0.36 | 2013-03-12 19:31:53 | 2013-03-12 07:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-03-12 19:31:11 | 0.02 | y | 119 | 67 | |||
| IIEES | GRMI | N | Sg | E | 2013-03-12 19:31:25 | -0.01 | y | 119 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2013-03-12 19:31:23 | 0.03 | y | 200 | 303 | |||
| IIEES | MAKU | E | Sg | E | 2013-03-12 19:31:48 | -0.02 | y | 200 | 303 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-03-12 19:31:31 | -0.02 | y | 264 | 136 | |||
