Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2013-03-16 17:37:08.0 |
| Date & Time (Local) | 1391/12/26 21:07:08.0 |

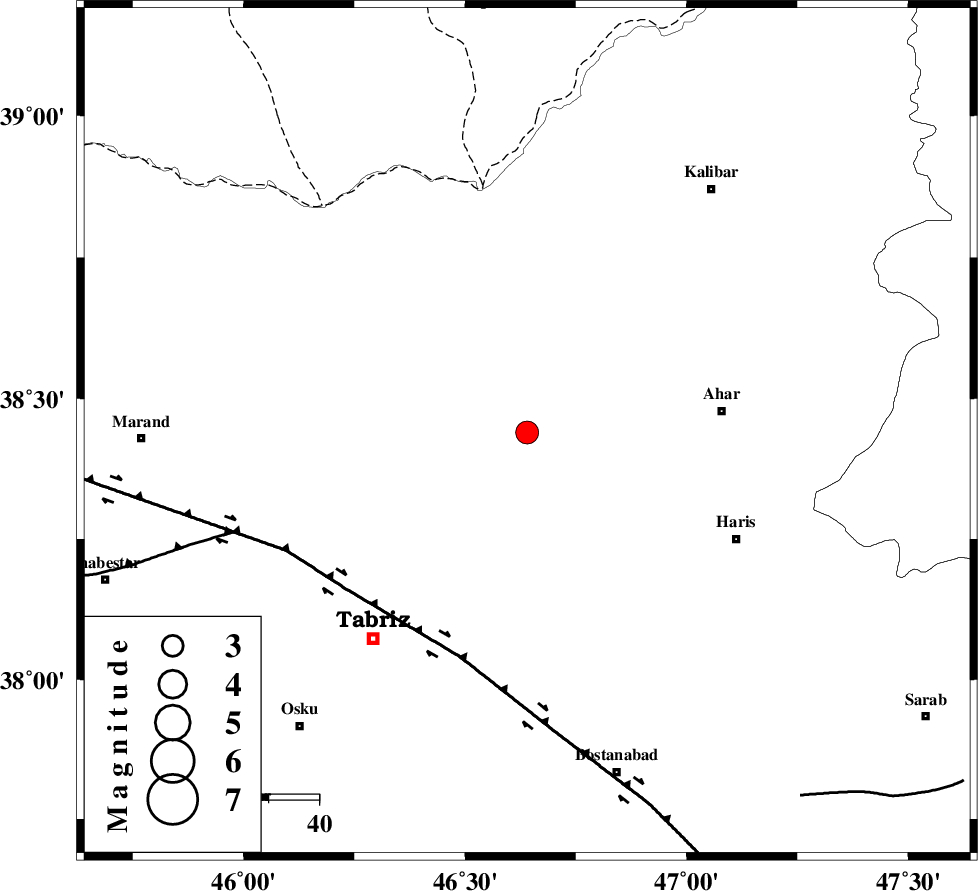

| Location | Lat:38.44 Lon: 46.64 |
| Region | Azarbaijan Sharghi Province, 39 km West of Ahar |
Nearest Cities |
|
| 5 km of Varzagan, Azarbaijan Sharghi Province | |
| 15 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 16 km North of Sarand, Azarbaijan Sharghi Province | |
| 22 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 24 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 46 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 61 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 90 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88235 | IIEES | GRMI | N | 643.7 | 0.28 | 2013-03-16 17:37:43 | 2013-03-16 05:53:00 | n |
| 88236 | IIEES | GRMI | E | 510.2 | 0.32 | 2013-03-16 17:37:44 | 2013-03-16 05:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-03-16 17:37:27 | -0.04 | y | 117 | 69 | |||
| IIEES | GRMI | E | Sg | E | 2013-03-16 17:37:42 | 0.03 | y | 117 | 69 | |||
| IIEES | MAKU | Z | Pn | E | 2013-03-16 17:37:40 | -0.02 | y | 197 | 301 | |||
| IIEES | MAKU | E | Sg | E | 2013-03-16 17:38:04 | 0.02 | y | 197 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-03-16 17:37:48 | 0.02 | y | 267 | 137 | |||
