Event Specification
Magnitude |
4.6 |
| Date & Time (UTC) | 2013-04-09 16:32:33.8 |
| Date & Time (Local) | 1392/1/20 21:02:33.8 |

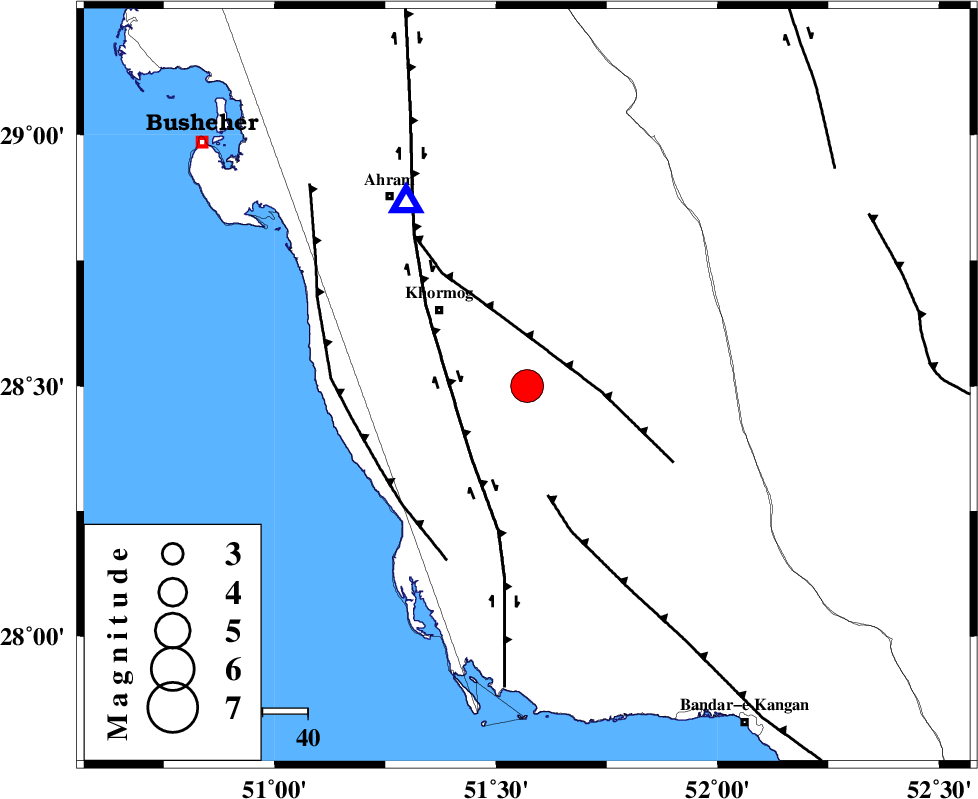

| Location | Lat:28.5 Lon: 51.57 |
| Region | Bushehr Province, 26 km South-East of Khormog |
Nearest Cities |
|
| 14 km North of Baduleh, Bushehr Province | |
| 19 km North of Kaki, Bushehr Province | |
| 22 km East of Buheyri, Bushehr Province | |
| 22 km North West of Shanbeh, Bushehr Province | |
| 26 km South East of Khormog, Bushehr Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 13 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 18 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 25 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >11.2 km |
| Error in Longitude | 10 km |
| Error in Depth | 5.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88471 | IIEES | AHRM | N | 64019.4 | 0.48 | 2013-04-09 16:32:54 | 2013-04-09 05:51:00 | n |
| 88472 | IIEES | AHRM | E | 46349.6 | 0.44 | 2013-04-09 16:32:56 | 2013-04-09 05:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-09 16:32:42 | -0.01 | y | 48.6 | 326 | |||
| IIEES | AHRM | N | Sg | E | 2013-04-09 16:32:48 | -0.05 | y | 48.6 | 326 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-09 16:32:57 | -0.04 | y | 141 | 99 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-04-09 16:33:56 | 0.18 | y | 601 | 346 | |||
