Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2013-04-09 22:20:45.9 |
| Date & Time (Local) | 1392/1/21 02:50:45.9 |

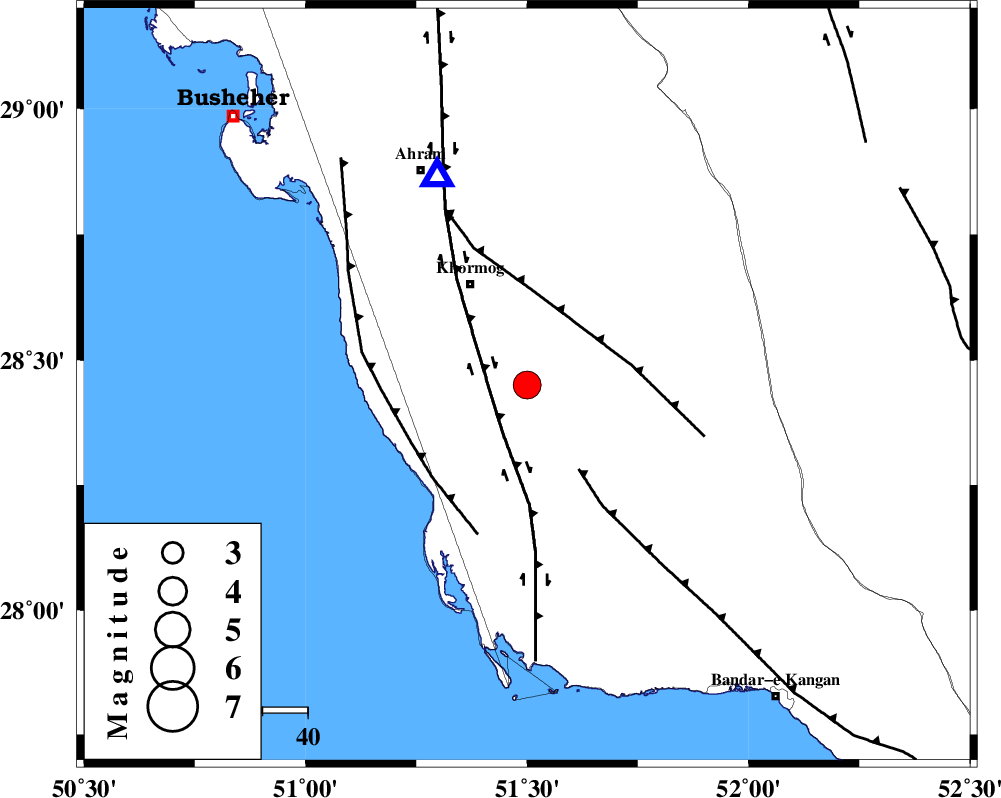

| Location | Lat:28.45 Lon: 51.5 |
| Region | Bushehr Province, 26 km South-East of Khormog |
Nearest Cities |
|
| 6 km North of Baduleh, Bushehr Province | |
| 13 km North of Kaki, Bushehr Province | |
| 20 km South East of Buheyri, Bushehr Province | |
| 26 km South East of Khormog, Bushehr Province | |
| 26 km North West of Shanbeh, Bushehr Province | |
| Depth | 25 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 12 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 19 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 22 km | |
| Number of Phases | 5 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >12.8 km |
| Error in Longitude | 12.7 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88522 | IIEES | AHRM | N | 8994.3 | 0.36 | 2013-04-09 22:21:08 | 2013-04-10 12:22:00 | n |
| 88523 | IIEES | AHRM | E | 20424.5 | 0.92 | 2013-04-09 22:21:09 | 2013-04-10 12:22:00 | n |
| 88524 | IIEES | GHIR | E | 1304.4 | 0.64 | 2013-04-09 22:21:30 | 2013-04-10 12:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-09 22:20:54 | -0.25 | y | 50.1 | 337 | |||
| IIEES | AHRM | E | Sg | E | 2013-04-09 22:21:02 | 0.09 | y | 50.1 | 337 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-09 22:21:10 | 0.18 | y | 147 | 97 | |||
| IIEES | KRBR | Z | Pn | E | 2013-04-09 22:21:59 | -0.37 | y | 539 | 70 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-04-09 22:22:08 | 0.37 | y | 604 | 346 | |||
