Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2013-04-14 05:21:49.2 |
| Date & Time (Local) | 1392/1/25 09:51:49.2 |
| Location | Lat:28.49 Lon: 51.68 |
| Region | Bushehr Province, 35 km South-East of Khormog |
Nearest Cities |
|
| 14 km North of Shanbeh, Bushehr Province | |
| 21 km North East of Baduleh, Bushehr Province | |
| 23 km North East of Kaki, Bushehr Province | |
| 32 km East of Buheyri, Bushehr Province | |
| 35 km South East of Khormog, Bushehr Province | |
| Depth | 17 km |
| Agency | |

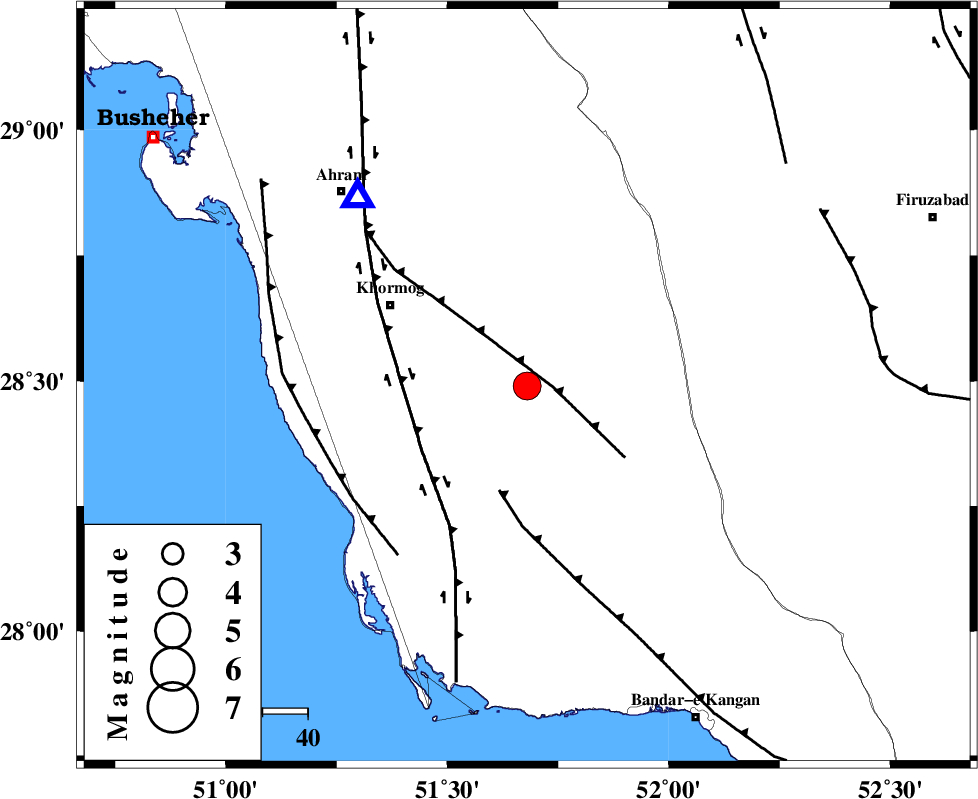

Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 6 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 24 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 27 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >8.5 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88722 | IIEES | GHIR | N | 2715.3 | 0.32 | 2013-04-14 05:22:29 | 2013-04-14 08:52:00 | n |
| 88723 | IIEES | GHIR | E | 3670.2 | 0.36 | 2013-04-14 05:22:33 | 2013-04-14 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-14 05:21:59 | 0 | y | 56.3 | 318 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-14 05:22:11 | 0.04 | y | 130 | 100 | |||
| IIEES | GHIR | E | Sg | E | 2013-04-14 05:22:26 | -0.04 | y | 130 | 100 | |||
| IIEES | YZKH | Z | Pn | E | 2013-04-14 05:23:00 | 0.07 | y | 515 | 32 | |||
| IIEES | KRBR | Z | Pn | E | 2013-04-14 05:23:01 | -0.02 | y | 521 | 70 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-04-14 05:23:11 | -0.06 | y | 605 | 345 | |||
