Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2013-04-16 18:57:25.5 |
| Date & Time (Local) | 1392/1/27 23:27:25.5 |

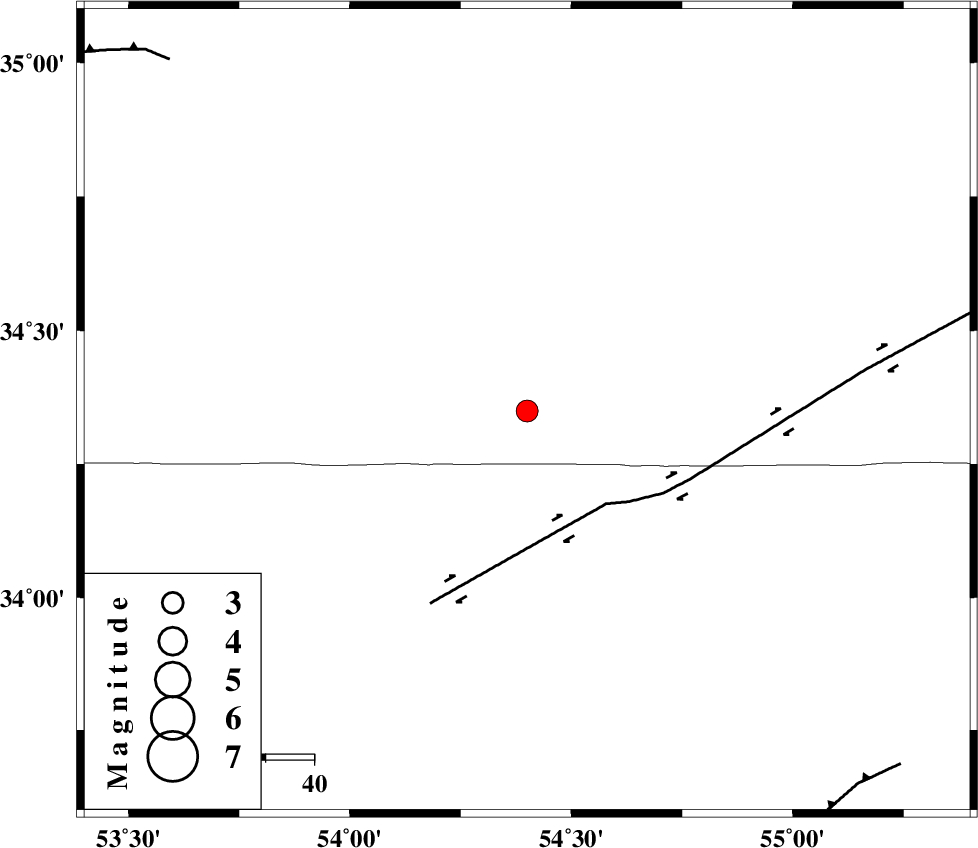

| Location | Lat:34.35 Lon: 54.4 |
| Region | Semnan Province, 203 km South of Damghan |
Nearest Cities |
|
| 34 km North of Jondaq, Esfahan Province | |
| 75 km North West of Farrokhi, Esfahan Province | |
| 81 km North of Chupanan, Esfahan Province | |
| 90 km North West of Khur, Esfahan Province | |
| 118 km North West of Mehranjan, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 25 km | |
| TORUD_F (Length: 136 km) , Distance to epicenter: 98 km | |
| KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 104 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 2 km |
| Error in Depth | 3.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88761 | IIEES | TABS | N | 97 | 0.96 | 2013-04-16 18:58:49 | 2013-04-16 08:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pn | E | 2013-04-16 18:58:00 | 0.19 | y | 217 | 175 | |||
| IIEES | YZKH | E | Sg | E | 2013-04-16 18:58:27 | -0.07 | y | 217 | 175 | |||
| IIEES | SHRO | Z | Pn | E | 2013-04-16 18:58:02 | 0.08 | y | 236 | 38 | |||
| IIEES | SHRO | N | Sg | E | 2013-04-16 18:58:32 | -0.04 | y | 236 | 38 | |||
| IIEES | TABS | Z | Pn | E | 2013-04-16 18:58:05 | 0.07 | y | 263 | 106 | |||
| IIEES | TABS | N | Sg | E | 2013-04-16 18:58:39 | -0.06 | y | 263 | 106 | |||
| IIEES | GHVR | Z | P | E | 2013-04-16 18:58:09 | -0.17 | y | 291 | 274 | |||
