Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2013-04-22 19:45:12.8 |
| Date & Time (Local) | 1392/2/3 00:15:12.8 |
| Location | Lat:28.57 Lon: 51.61 |
| Region | Bushehr Province, 25 km East of Khormog |
Nearest Cities |
|
| 23 km North East of Baduleh, Bushehr Province | |
| 24 km East of Buheyri, Bushehr Province | |
| 25 km North West of Shanbeh, Bushehr Province | |
| 25 km East of Khormog, Bushehr Province | |
| 27 km North of Kaki, Bushehr Province | |
| Depth | 15 km |
| Agency | |

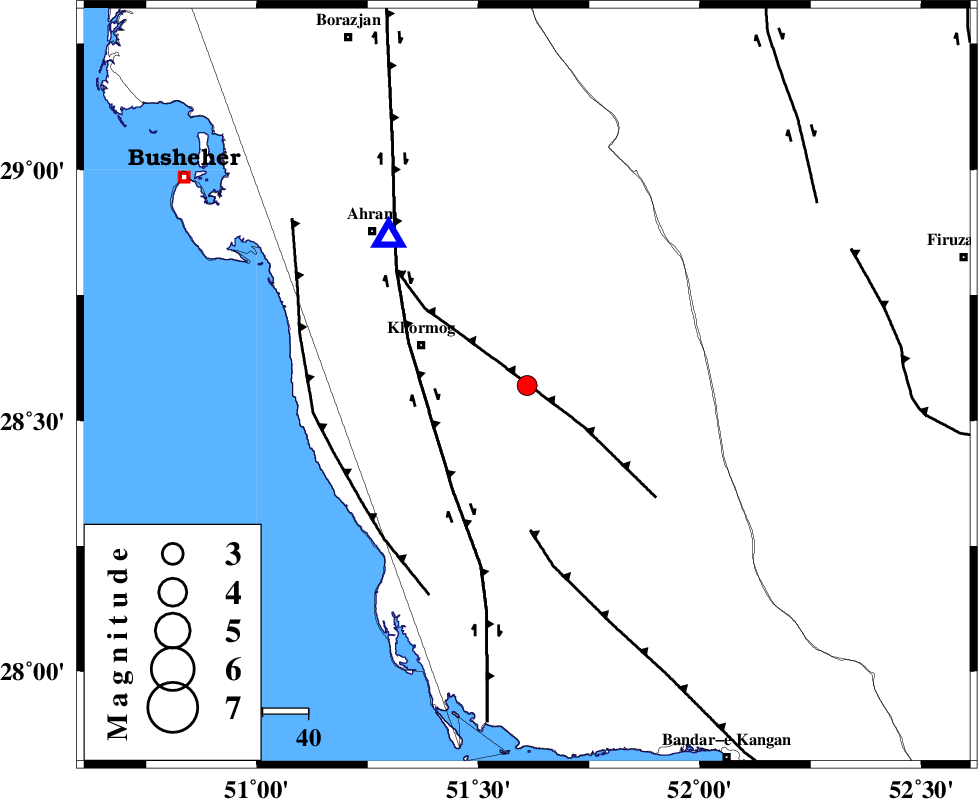

Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 7 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 22 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 32 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >8.7 km |
| Error in Longitude | 6 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88895 | IIEES | AHRM | E | 284.2 | 0.64 | 2013-04-22 19:45:37 | 2013-04-22 09:24:00 | n |
| 88896 | IIEES | AHRM | N | 377.6 | 0.56 | 2013-04-22 19:45:42 | 2013-04-22 09:24:00 | n |
| 88897 | IIEES | GHIR | E | 473.8 | 0.36 | 2013-04-22 19:45:57 | 2013-04-22 09:24:00 | n |
| 88898 | IIEES | GHIR | N | 678.1 | 0.36 | 2013-04-22 19:45:58 | 2013-04-22 09:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-04-22 19:45:20 | -0.12 | y | 45.2 | 318 | |||
| IIEES | AHRM | N | Sg | E | 2013-04-22 19:45:27 | 0.07 | y | 45.2 | 318 | |||
| IIEES | GHIR | Z | Pg | E | 2013-04-22 19:45:36 | 0.12 | y | 138 | 103 | |||
| IIEES | GHIR | N | Sg | E | 2013-04-22 19:45:52 | -0.07 | y | 138 | 103 | |||
| IIEES | YZKH | Z | Pn | E | 2013-04-22 19:46:24 | 0 | y | 512 | 33 | |||
