Event Specification
Magnitude |
2.1 |
| Date & Time (UTC) | 2013-04-25 01:01:20.9 |
| Date & Time (Local) | 1392/2/5 05:31:20.9 |

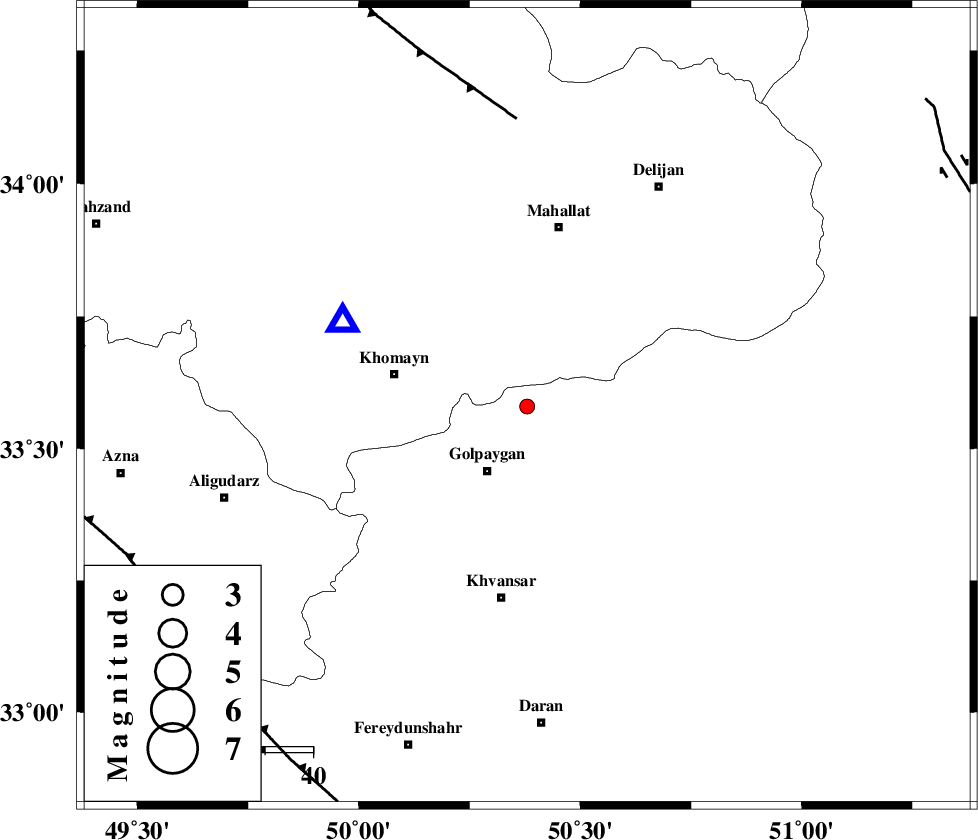

| Location | Lat:33.58 Lon: 50.38 |
| Region | Esfahan Province, 16 km North of Golpayegan |
Nearest Cities |
|
| 6 km North of Saeedabad, Esfahan Province | |
| 11 km North of Konjedkhan, Esfahan Province | |
| 12 km North of Gogad, Esfahan Province | |
| 14 km North of Nivan nar, Esfahan Province | |
| 16 km North of Golpayegan, Esfahan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 60 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 86 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 92 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 88949 | IIEES | KHMZ | E | 198.7 | 0.28 | 2013-04-25 01:01:36 | 2013-04-25 05:04:00 | n |
| 88950 | IIEES | KHMZ | N | 162.8 | 0.36 | 2013-04-25 01:01:36 | 2013-04-25 05:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2013-04-25 01:01:28 | -0.01 | y | 42.4 | 295 | |||
| IIEES | KHMZ | N | Sg | E | 2013-04-25 01:01:34 | 0.01 | y | 42.4 | 295 | |||
| IIEES | ASAO | Z | Pg | E | 2013-04-25 01:01:40 | 0.1 | y | 112 | 343 | |||
| IIEES | ASAO | E | Sg | E | 2013-04-25 01:01:53 | -0.06 | y | 112 | 343 | |||
| IIEES | GHVR | Z | Pg | E | 2013-04-25 01:01:42 | -0.09 | y | 128 | 38 | |||
| IIEES | GHVR | E | Sg | E | 2013-04-25 01:01:58 | 0.05 | y | 128 | 38 | |||
