Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2013-05-12 04:53:40.6 |
| Date & Time (Local) | 1392/2/22 09:23:40.6 |

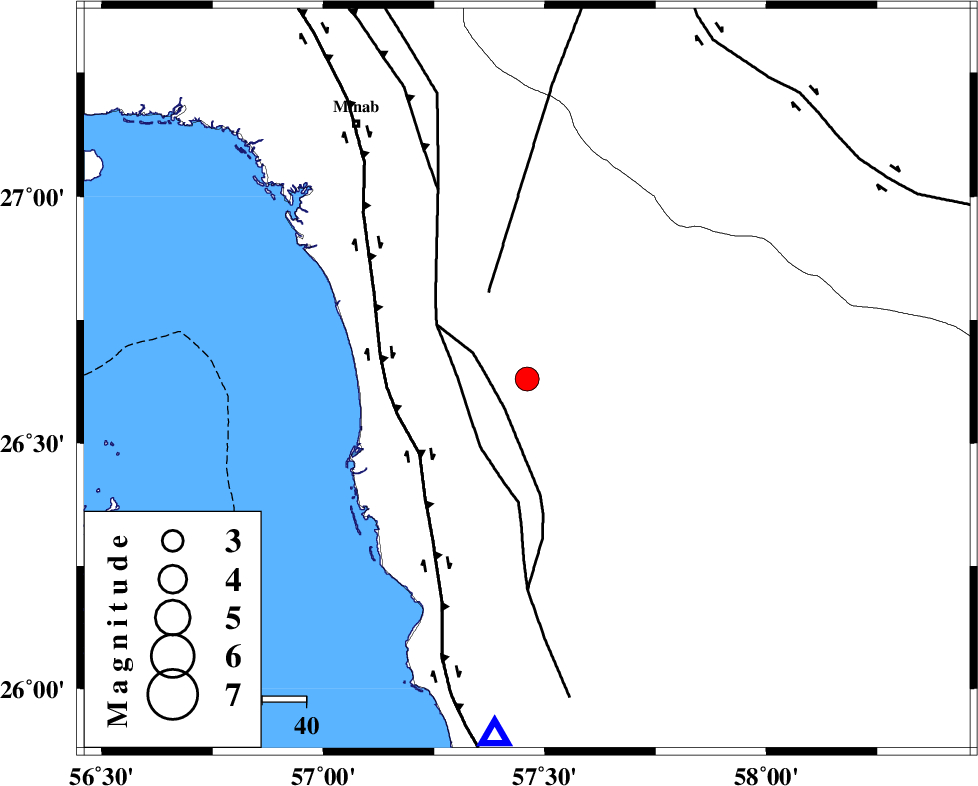

| Location | Lat:26.63 Lon: 57.46 |
| Region | Hormozgan Province, 87 km South of Manujan |
Nearest Cities |
|
| 11 km West of Darpahn, Hormozgan Province | |
| 23 km South of Sanadrak, Hormozgan Province | |
| 38 km North East of Gonmardi, Hormozgan Province | |
| 38 km North East of Bandar-e sirk, Hormozgan Province | |
| 44 km South East of Koryan, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 8 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 16 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 21 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89222 | IIEES | BNDS | E | 489.6 | 0.38 | 2013-05-12 04:54:35 | 2013-05-12 06:27:00 | n |
| 89223 | IIEES | BNDS | N | 563.8 | 0.53 | 2013-05-12 04:54:35 | 2013-05-12 06:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2013-05-12 04:54:06 | -0.04 | y | 154 | 304 | |||
| IIEES | CHBR | Z | Pn | E | 2013-05-12 04:54:28 | 0.05 | y | 323 | 110 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-05-12 04:54:46 | -0.16 | y | 465 | 44 | |||
| IIEES | GHIR | Z | Pn | E | 2013-05-12 04:54:47 | -0.06 | y | 479 | 294 | |||
| IIEES | BSRN | Z | Pn | E | 2013-05-12 04:55:04 | 0.06 | y | 614 | 15 | |||
| IIEES | YZKH | Z | Pn | E | 2013-05-12 04:55:15 | 0.26 | y | 697 | 337 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-05-12 04:56:01 | 0.03 | y | 1068 | 319 | |||
