Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2013-05-18 10:43:48.3 |
| Date & Time (Local) | 1392/2/28 15:13:48.3 |

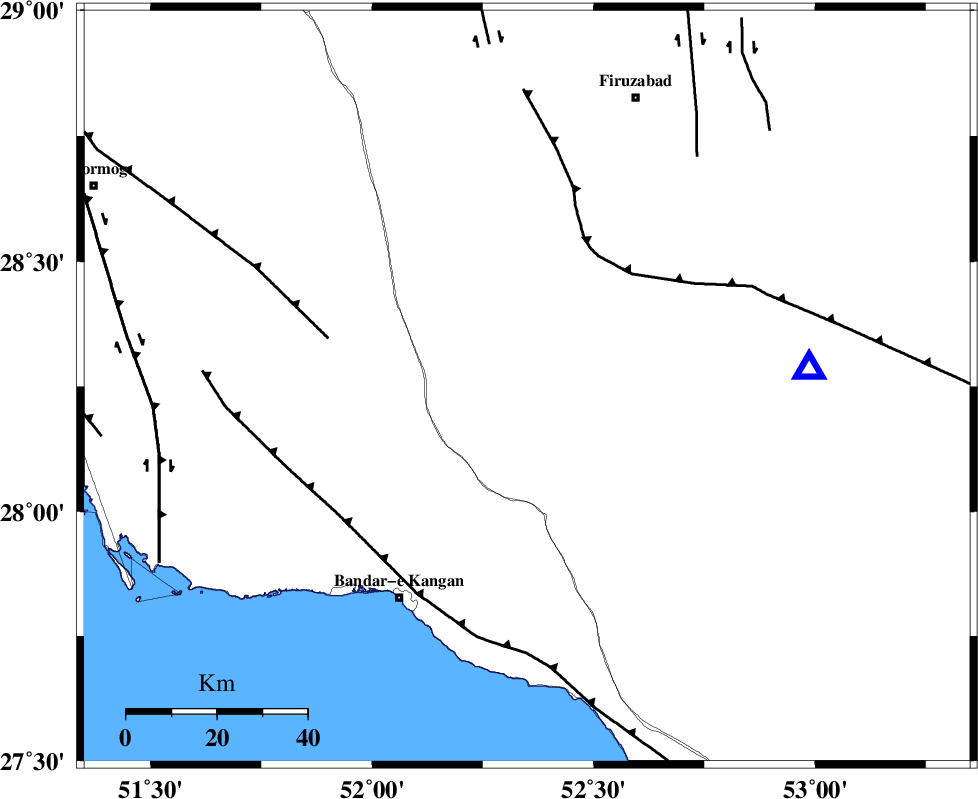

| Location | Lat:28.25 Lon: 52.35 |
| Region | Fars Province, 46 km North of Jam |
Nearest Cities |
|
| 13 km North of Dolatabad, Fars Province | |
| 27 km South of Dahrom, Fars Province | |
| 32 km South West of Hengam, Fars Province | |
| 36 km North East of Riz, Bushehr Province | |
| 46 km North West of Garmesht, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 33 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 45 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 50 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 5 |
| Error in Latitude | >12.4 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89332 | IIEES | GHIR | N | 3345.6 | 0.37 | 2013-05-18 10:44:12 | 2013-05-18 12:35:00 | n |
| 89333 | IIEES | GHIR | E | 3399.7 | 0.47 | 2013-05-18 10:44:14 | 2013-05-18 12:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2013-05-18 10:43:58 | -0.66 | y | 62.4 | 86 | |||
| IIEES | GHIR | N | Sg | E | 2013-05-18 10:44:07 | -0.16 | y | 62.4 | 86 | |||
| IIEES | AHRM | Z | Pg | E | 2013-05-18 10:44:09 | 0.24 | y | 124 | 304 | |||
| IIEES | AHRM | N | Sg | E | 2013-05-18 10:44:23 | -0.39 | y | 124 | 304 | |||
| IIEES | BNDS | Z | Pn | E | 2013-05-18 10:44:44 | 0.34 | y | 388 | 103 | |||
| IIEES | KRBR | Z | Pn | E | 2013-05-18 10:44:55 | 0.54 | y | 470 | 65 | |||
| IIEES | YZKH | Z | Pn | E | 2013-05-18 10:44:59 | 0.48 | y | 507 | 25 | |||
