Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2013-05-20 15:32:20.5 |
| Date & Time (Local) | 1392/2/30 20:02:20.5 |

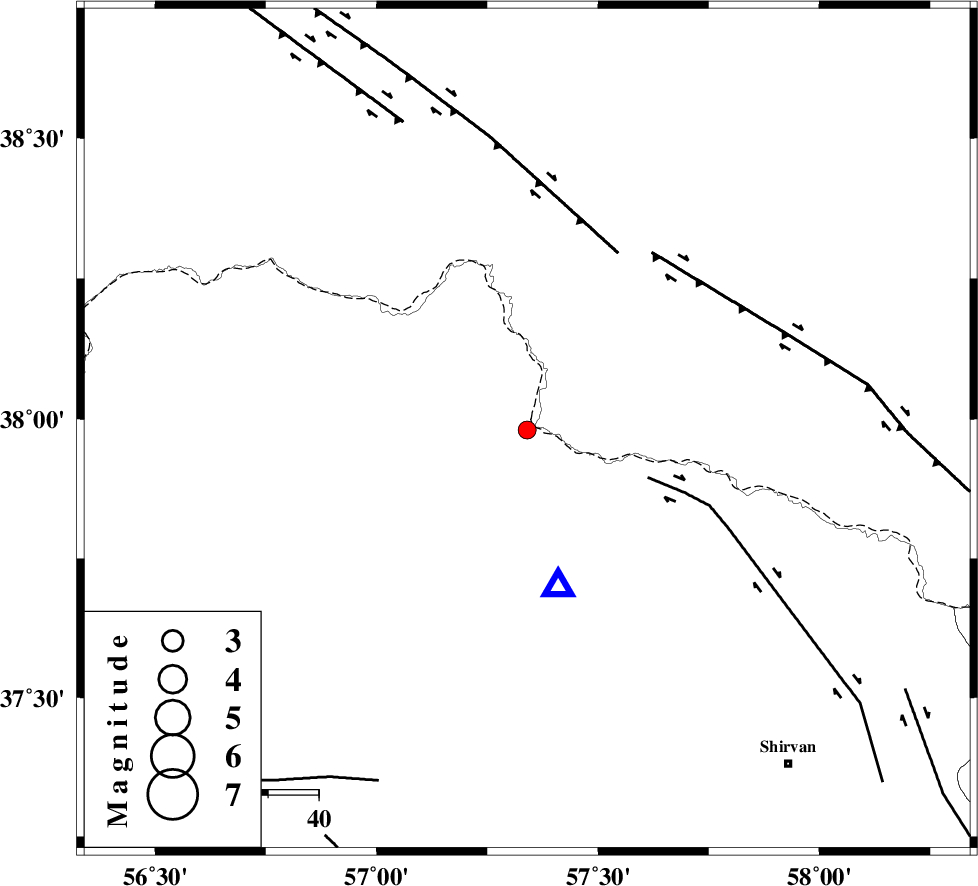

| Location | Lat:37.98 Lon: 57.34 |
| Region | Khorasan(north) Province, 57 km North of Bojnurd |
Nearest Cities |
|
| 16 km North West of Gifan olia, Khorasan(north) Province | |
| 20 km North East of Raz, Khorasan(north) Province | |
| 35 km North East of Tangehzar, Khorasan(north) Province | |
| 44 km North West of Yangi ghale-ye bala, Khorasan(north) Province | |
| 47 km North East of Pish qaleh, Khorasan(north) Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| BAGHAN_GERMAB_F (Length: 79 km) , Distance to epicenter: 26 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 39 km | |
| MAIN_KOPEHDAGH_F3 (Length: 96 km) , Distance to epicenter: 43 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >6.9 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89365 | IIEES | MRVT | E | 157.4 | 0.32 | 2013-05-20 15:33:04 | 2013-05-20 05:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BJRD | Z | Pg | E | 2013-05-20 15:32:26 | -0.06 | y | 32 | 170 | |||
| IIEES | MRVT | Z | Pg | E | 2013-05-20 15:32:40 | -0.06 | y | 116 | 252 | |||
| IIEES | MRVT | E | Sg | E | 2013-05-20 15:32:55 | 0 | y | 116 | 252 | |||
| IIEES | SHRO | Z | Pn | E | 2013-05-20 15:33:00 | 0.12 | y | 249 | 209 | |||
