Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2013-05-23 12:52:14.8 |
| Date & Time (Local) | 1392/3/2 17:22:14.8 |

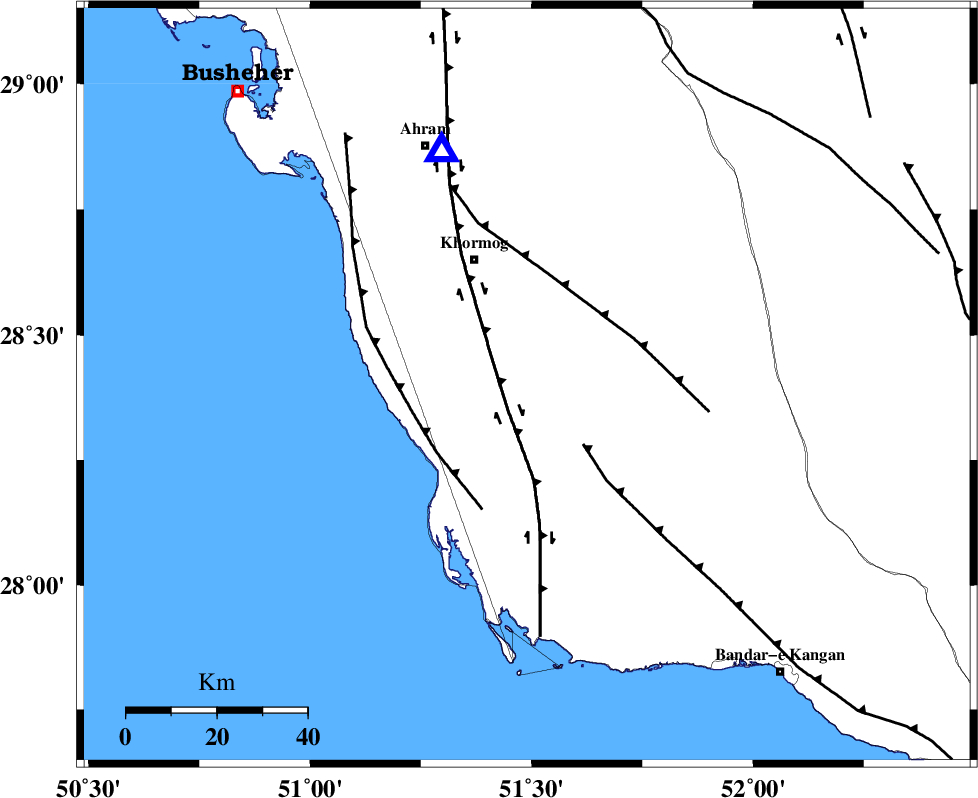

| Location | Lat:28.4 Lon: 51.49 |
| Region | Bushehr Province, 31 km South-East of Khormog |
Nearest Cities |
|
| 1 km North of Baduleh, Bushehr Province | |
| 7 km North of Kaki, Bushehr Province | |
| 24 km South East of Buheyri, Bushehr Province | |
| 26 km North of Abkesh, Bushehr Province | |
| 27 km North West of Shanbeh, Bushehr Province | |
| Depth | 32 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 7 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 18 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 24 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >8 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89408 | IIEES | GHIR | N | 3659.3 | 0.48 | 2013-05-23 12:52:59 | 2013-05-23 02:15:00 | n |
| 89409 | IIEES | GHIR | E | 2604.7 | 0.44 | 2013-05-23 12:52:59 | 2013-05-23 02:15:00 | n |
| 89410 | IIEES | KRBR | E | 67.6 | 0.48 | 2013-05-23 12:54:53 | 2013-05-23 02:15:00 | n |
| 89411 | IIEES | KRBR | N | 49.6 | 0.56 | 2013-05-23 12:54:56 | 2013-05-23 02:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-05-23 12:52:25 | -0.03 | y | 55.4 | 340 | |||
| IIEES | GHIR | Z | Pg | E | 2013-05-23 12:52:39 | 0.06 | y | 147 | 94 | |||
| IIEES | GHIR | N | Sg | E | 2013-05-23 12:52:56 | -0.02 | y | 147 | 94 | |||
| IIEES | YZKH | Z | Pn | E | 2013-05-23 12:53:27 | 0.11 | y | 533 | 33 | |||
| IIEES | KRBR | Z | Pn | E | 2013-05-23 12:53:28 | -0.14 | y | 542 | 70 | |||
