Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2013-05-24 04:03:59.9 |
| Date & Time (Local) | 1392/3/3 08:33:59.9 |
| Location | Lat:30.64 Lon: 57.34 |
| Region | Kerman Province, 46 km North-East of Kerman |
Nearest Cities |
|
| 16 km North of Dehlulu, Kerman Province | |
| 20 km East of Harjand, Kerman Province | |
| 37 km South East of Hejdak, Kerman Province | |
| 39 km North East of Hutak, Kerman Province | |
| 42 km North East of Chatrud, Kerman Province | |
| Depth | 16 km |
| Agency | |

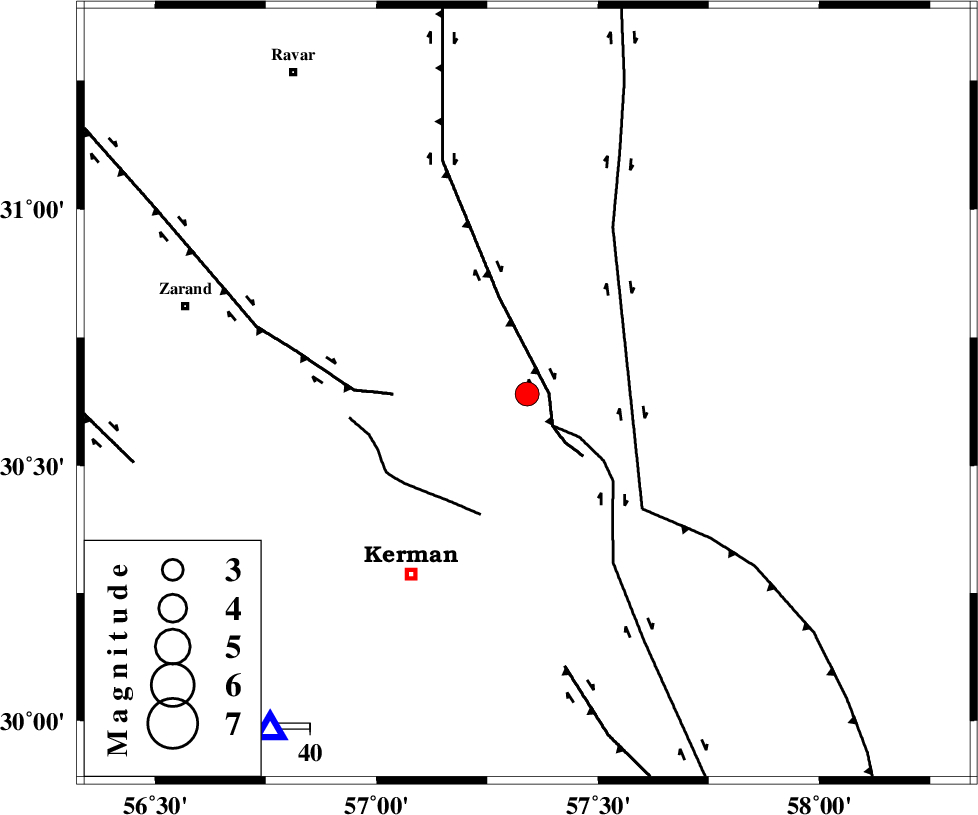

Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 5 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 9 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 28 km | |
| Number of Phases | 7 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 1 km |
| Error in Depth | 3.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89418 | IIEES | TABS | N | 125.7 | 0.88 | 2013-05-24 04:05:45 | 2013-05-24 06:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pn | E | 2013-05-24 04:04:35 | -0.05 | y | 225 | 49 | |||
| IIEES | BSRN | N | Sg | E | 2013-05-24 04:05:03 | 0.02 | y | 225 | 49 | |||
| IIEES | YZKH | Z | Pn | E | 2013-05-24 04:04:48 | 0.08 | y | 325 | 307 | |||
| IIEES | YZKH | N | Sg | E | 2013-05-24 04:05:31 | -0.02 | y | 325 | 307 | |||
| IIEES | TABS | Z | Pn | E | 2013-05-24 04:04:49 | 0 | y | 335 | 357 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-05-24 04:04:51 | 0 | y | 350 | 108 | |||
| IIEES | NASN | Z | Pn | E | 2013-05-24 04:05:08 | -0.04 | y | 492 | 300 | |||
