Event Specification
Magnitude |
1.9 |
| Date & Time (UTC) | 2013-05-24 22:18:49.1 |
| Date & Time (Local) | 1392/3/4 02:48:49.1 |
| Location | Lat:35.55 Lon: 51.23 |
| Region | Tehran Province, 4 km Eslamshahr |
Nearest Cities |
|
| 4 km of Eslamshahr, Tehran Province | |
| 6 km of Deh abbas, Tehran Province | |
| 9 km of Firooz bahram, Tehran Province | |
| 12 km North West of Kahrizak, Tehran Province | |
| 13 km North of Vahnabad, Tehran Province | |
| Depth | 31 km |
| Agency | |

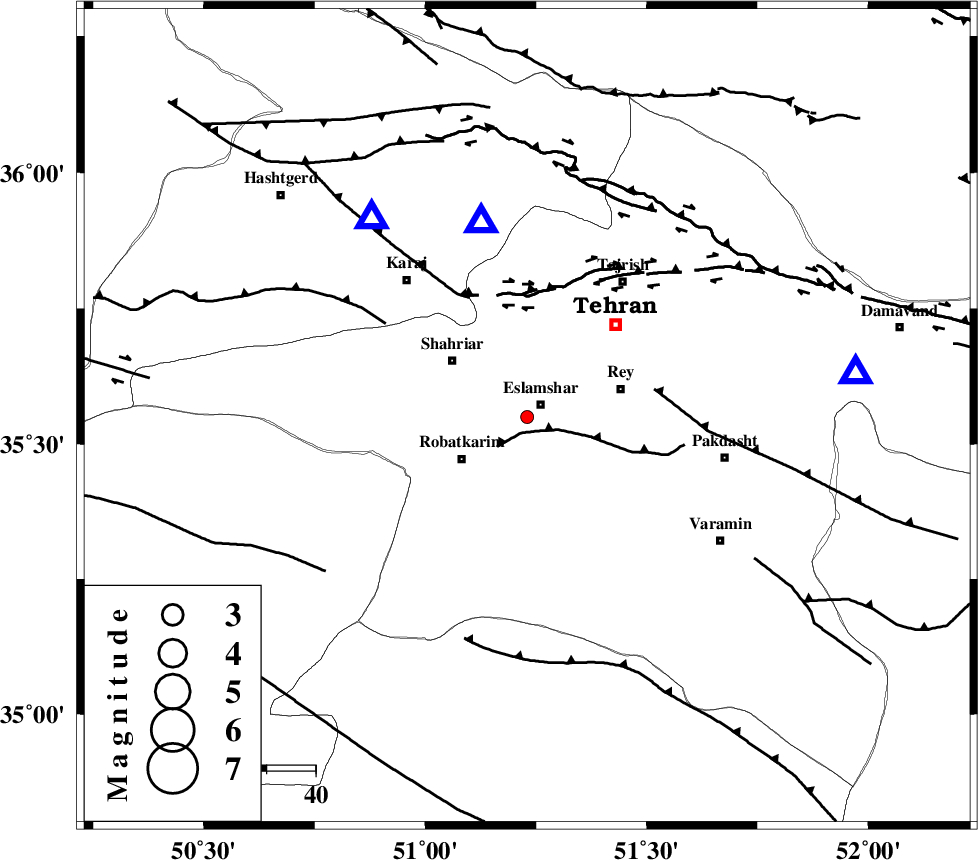

Faults within 150 km: |
|
| KAHRIZAK_F (Length: 44 km) , Distance to epicenter: 3 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 22 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 27 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 2.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89421 | IIEES | CHTH | E | 98.8 | 0.08 | 2013-05-24 22:19:04 | 2013-05-25 03:09:00 | n |
| 89422 | IIEES | CHTH | N | 109.1 | 0.08 | 2013-05-24 22:19:04 | 2013-05-25 03:09:00 | n |
| 89423 | IIEES | GHVR | N | 24.4 | 0.1 | 2013-05-24 22:19:24 | 2013-05-25 03:09:00 | n |
| 89424 | IIEES | GHVR | E | 29.5 | 0.12 | 2013-05-24 22:19:24 | 2013-05-25 03:09:00 | n |
| 89425 | IIEES | ASAO | E | 10.8 | 0.11 | 2013-05-24 22:19:34 | 2013-05-25 03:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pg | E | 2013-05-24 22:18:57 | -0.06 | y | 41.1 | 347 | |||
| IIEES | THKV | Z | Pg | E | 2013-05-24 22:18:59 | 0.06 | y | 51.6 | 323 | |||
| IIEES | GHVR | Z | Pg | E | 2013-05-24 22:19:08 | 0.02 | y | 118 | 179 | |||
| IIEES | ASAO | Z | Pn | E | 2013-05-24 22:19:14 | -0.01 | y | 156 | 225 | |||
| IIEES | ASAO | E | Sg | E | 2013-05-24 22:19:33 | -0.01 | y | 156 | 225 | |||
