Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2013-05-26 22:08:59.3 |
| Date & Time (Local) | 1392/3/6 02:38:59.3 |

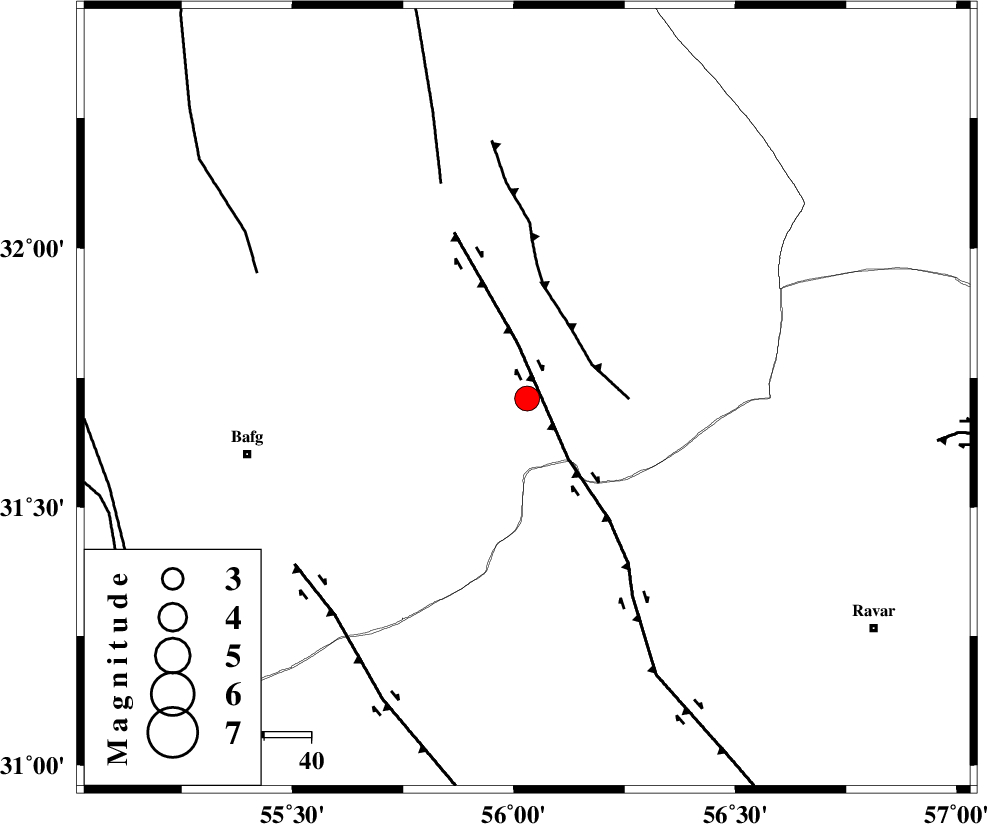

| Location | Lat:31.71 Lon: 56.03 |
| Region | Yazd Province, 61 km North-East of Bafq |
Nearest Cities |
|
| 6 km of Benestan, Yazd Province | |
| 18 km South of Behabad, Yazd Province | |
| 19 km North West of Asfih, Yazd Province | |
| 23 km East of Kushk, Yazd Province | |
| 26 km North of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 12 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 16 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 50 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89445 | IIEES | KRBR | E | 288.6 | 0.28 | 2013-05-26 22:10:00 | 2013-05-27 02:09:00 | n |
| 89446 | IIEES | KRBR | N | 590.9 | 0.88 | 2013-05-26 22:10:01 | 2013-05-27 02:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-05-26 22:09:25 | 0.01 | y | 155 | 299 | |||
| IIEES | YZKH | N | Sg | E | 2013-05-26 22:09:44 | -0.02 | y | 155 | 299 | |||
| IIEES | KRBR | Z | Pn | E | 2013-05-26 22:09:32 | -0.04 | y | 204 | 160 | |||
| IIEES | TABS | Z | Pn | E | 2013-05-26 22:09:36 | 0.1 | y | 238 | 25 | |||
| IIEES | TABS | E | Sg | E | 2013-05-26 22:10:06 | -0.05 | y | 238 | 25 | |||
