Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2013-05-26 22:45:32.9 |
| Date & Time (Local) | 1392/3/6 03:15:32.9 |

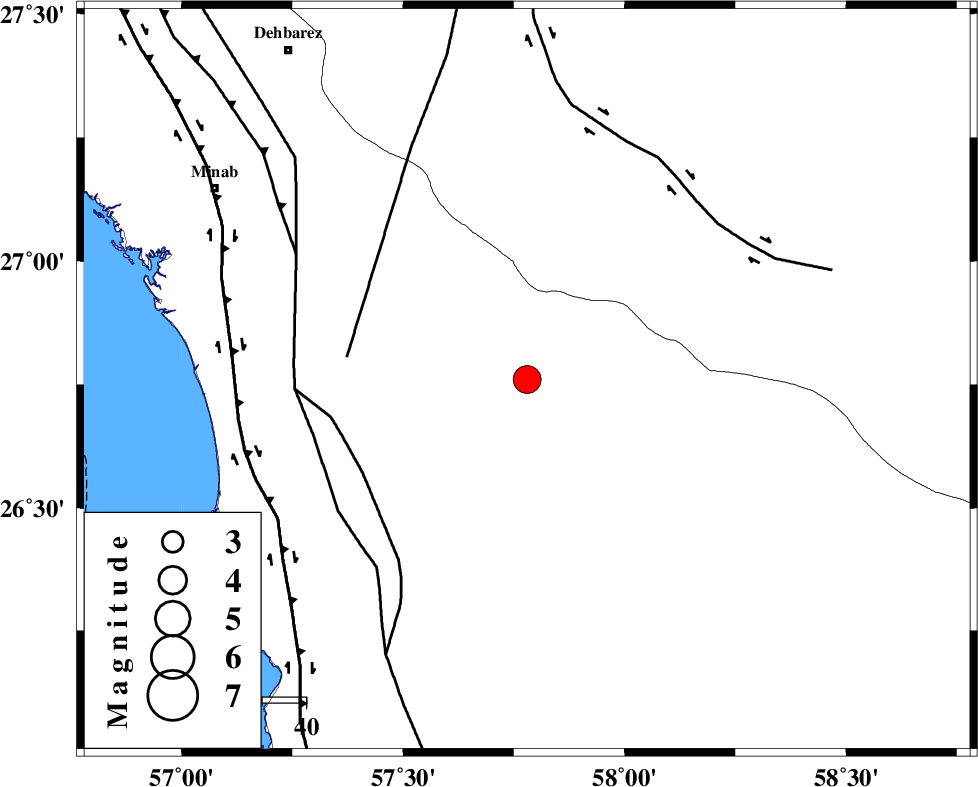

| Location | Lat:26.76 Lon: 57.78 |
| Region | Hormozgan Province, 78 km South-East of Manujan |
Nearest Cities |
|
| 22 km North West of Angahran, Hormozgan Province | |
| 24 km North East of Darpahn, Hormozgan Province | |
| 36 km East of Sanadrak, Hormozgan Province | |
| 41 km South West of Keshmiran, Kerman Province | |
| 60 km South East of Koryan, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 41 km | |
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 42 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 50 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89449 | IIEES | AHRM | E | 33.7 | 0.44 | 2013-05-26 22:48:14 | 2013-05-27 02:21:00 | n |
| 89450 | IIEES | AHRM | N | 34.2 | 0.44 | 2013-05-26 22:48:23 | 2013-05-27 02:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHBR | Z | Pn | E | 2013-05-26 22:46:17 | -0.04 | y | 299 | 115 | |||
| IIEES | KRBR | Z | Pn | E | 2013-05-26 22:46:26 | -0.11 | y | 371 | 345 | |||
| IIEES | KRBR | E | Sg | E | 2013-05-26 22:47:17 | 0 | y | 371 | 345 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-05-26 22:46:34 | 0.11 | y | 432 | 42 | |||
| IIEES | GHIR | Z | Pn | E | 2013-05-26 22:46:43 | -0.03 | y | 503 | 291 | |||
| IIEES | AHRM | Z | Pn | E | 2013-05-26 22:47:05 | 0.15 | y | 680 | 292 | |||
