Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2013-05-30 05:19:39.8 |
| Date & Time (Local) | 1392/3/9 09:49:39.8 |

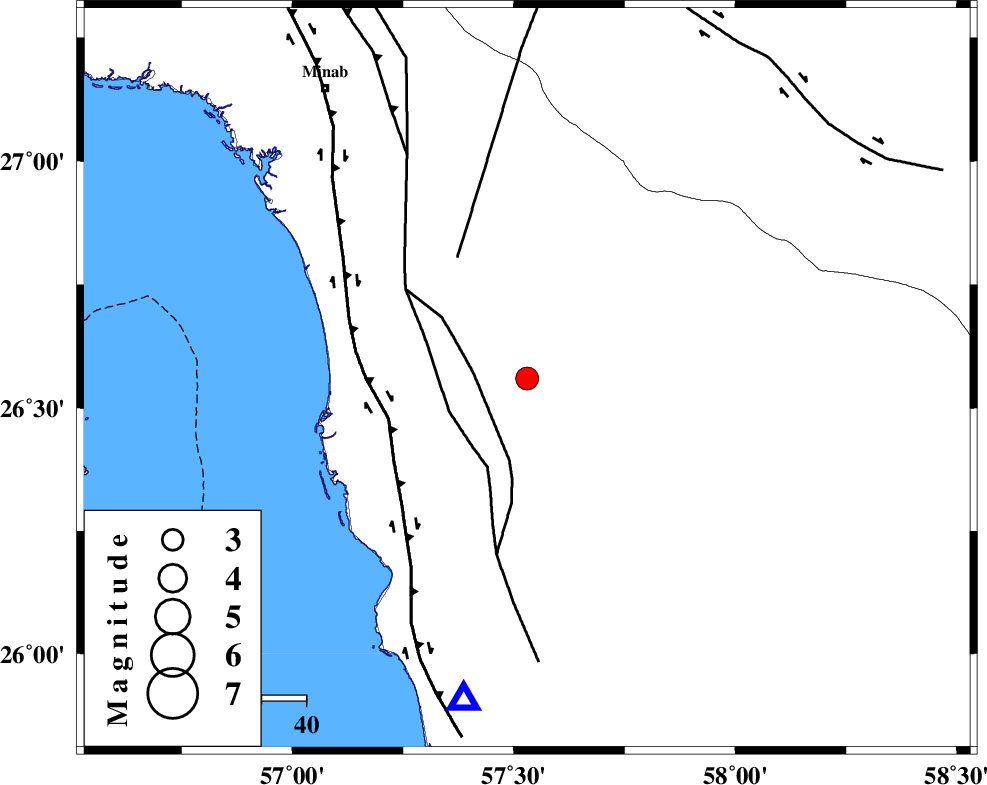

| Location | Lat:26.56 Lon: 57.53 |
| Region | Hormozgan Province, 95 km South of Manujan |
Nearest Cities |
|
| 10 km of Darpahn, Hormozgan Province | |
| 32 km South East of Sanadrak, Hormozgan Province | |
| 37 km West of Angahran, Hormozgan Province | |
| 38 km North East of Gonmardi, Hormozgan Province | |
| 43 km North East of Bandar-e sirk, Hormozgan Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 12 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 19 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 31 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >4 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89483 | IIEES | BNDS | N | 306.7 | 0.44 | 2013-05-30 05:20:33 | 2013-05-30 06:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | P | E | 2013-05-30 05:20:07 | -0.17 | y | 164 | 305 | |||
| IIEES | BNDS | E | S | E | 2013-05-30 05:20:27 | 0.1 | y | 164 | 305 | |||
| IIEES | CHBR | Z | Pn | E | 2013-05-30 05:20:27 | 0 | y | 314 | 109 | |||
| IIEES | KRBR | Z | Pn | E | 2013-05-30 05:20:36 | 0.18 | y | 387 | 349 | |||
| IIEES | KRBR | E | S | E | 2013-05-30 05:21:17 | -0.12 | y | 387 | 349 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-05-30 05:20:46 | -0.01 | y | 465 | 43 | |||
| IIEES | BSRN | Z | Pn | E | 2013-05-30 05:21:05 | 0.05 | y | 619 | 14 | |||
