Event Specification
Magnitude |
4.2 |
| Date & Time (UTC) | 2013-06-05 05:34:38.2 |
| Date & Time (Local) | 1392/3/15 10:04:38.2 |
| Location | Lat:26.72 Lon: 57.66 |
| Region | Hormozgan Province, 79 km South-East of Manujan |
Nearest Cities |
|
| 12 km North of Darpahn, Hormozgan Province | |
| 26 km South East of Sanadrak, Hormozgan Province | |
| 27 km North West of Angahran, Hormozgan Province | |
| 50 km South West of Keshmiran, Kerman Province | |
| 51 km South East of Koryan, Hormozgan Province | |
| Depth | 14 km |
| Agency | |

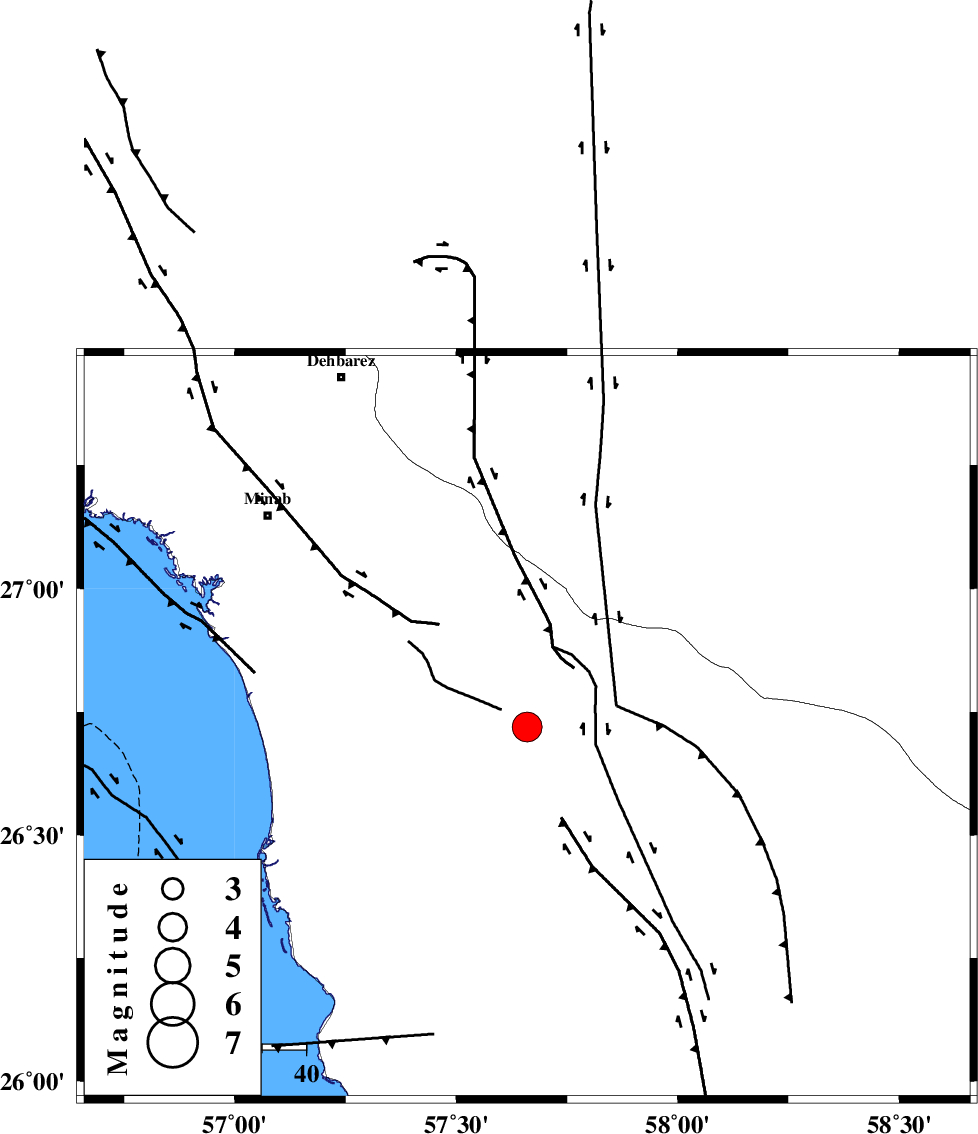

Faults within 150 km: |
|
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 30 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 30 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 37 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89554 | IIEES | AHRM | N | 61.1 | 0.52 | 2013-06-05 05:37:30 | 2013-06-05 06:59:00 | n |
| 89555 | IIEES | KHMZ | E | 9.2 | 0.68 | 2013-06-05 05:38:54 | 2013-06-05 06:59:00 | n |
| 89556 | IIEES | KHMZ | N | 7.8 | 0.48 | 2013-06-05 05:39:04 | 2013-06-05 06:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2013-06-05 05:35:05 | -0.18 | y | 166 | 297 | |||
| IIEES | CHBR | Z | Pn | E | 2013-06-05 05:35:24 | 0.02 | y | 308 | 113 | |||
| IIEES | KRBR | Z | Pn | E | 2013-06-05 05:35:32 | 0.3 | y | 372 | 346 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-06-05 05:35:40 | -0.09 | y | 443 | 43 | |||
| IIEES | GHIR | Z | Pn | E | 2013-06-05 05:35:47 | 0.15 | y | 494 | 292 | |||
| IIEES | BSRN | Z | Pn | E | 2013-06-05 05:36:00 | -0.21 | y | 599 | 13 | |||
