Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2013-06-06 19:43:39.7 |
| Date & Time (Local) | 1392/3/17 00:13:39.7 |

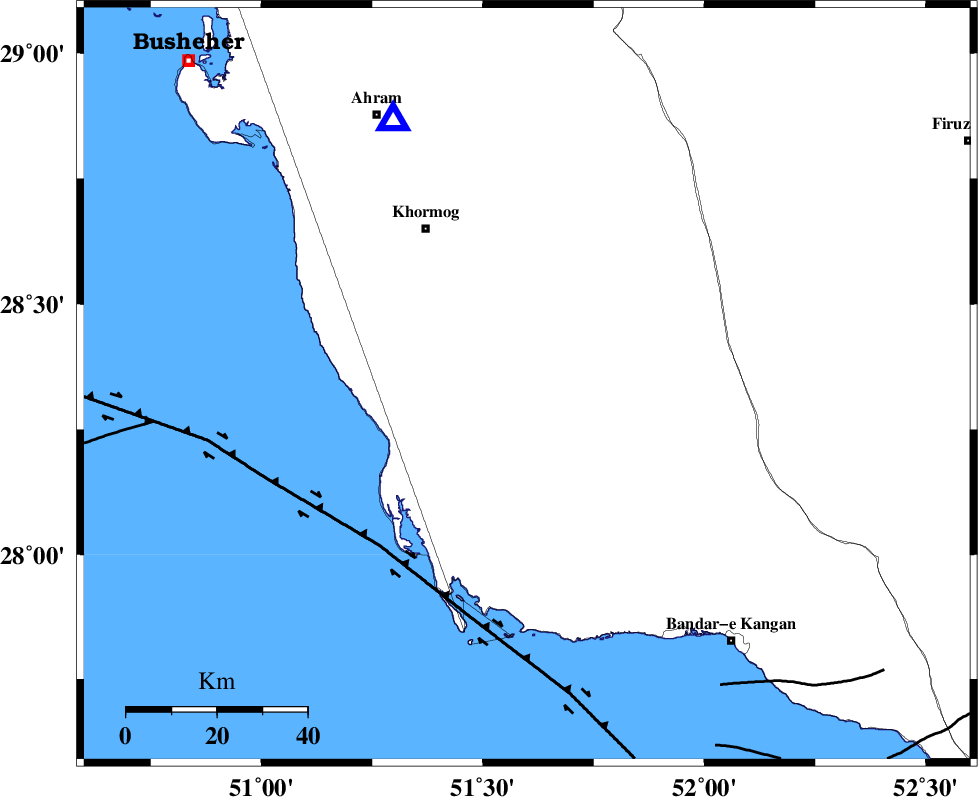

| Location | Lat:28.34 Lon: 51.6 |
| Region | Bushehr Province, 41 km South-East of Khormog |
Nearest Cities |
|
| 8 km North of Kaki, Bushehr Province | |
| 12 km East of Baduleh, Bushehr Province | |
| 17 km West of Shanbeh, Bushehr Province | |
| 21 km North of Abkesh, Bushehr Province | |
| 30 km North East of Ziyarat, Bushehr Province | |
| Depth | 24 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 7 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 15 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 21 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >8.9 km |
| Error in Longitude | 8.3 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89571 | IIEES | AHRM | N | 2480.5 | 0.44 | 2013-06-06 19:44:07 | 2013-06-06 09:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-06-06 19:43:50 | -0.19 | y | 64.8 | 333 | |||
| IIEES | AHRM | N | Sg | E | 2013-06-06 19:43:59 | 0.09 | y | 64.8 | 333 | |||
| IIEES | GHIR | Z | Pg | E | 2013-06-06 19:44:02 | 0.09 | y | 137 | 92 | |||
| IIEES | YZKH | Z | Pn | E | 2013-06-06 19:44:52 | -0.21 | y | 533 | 32 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-06-06 19:45:03 | 0.27 | y | 618 | 346 | |||
