Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2013-06-16 03:11:58.2 |
| Date & Time (Local) | 1392/3/26 07:41:58.2 |

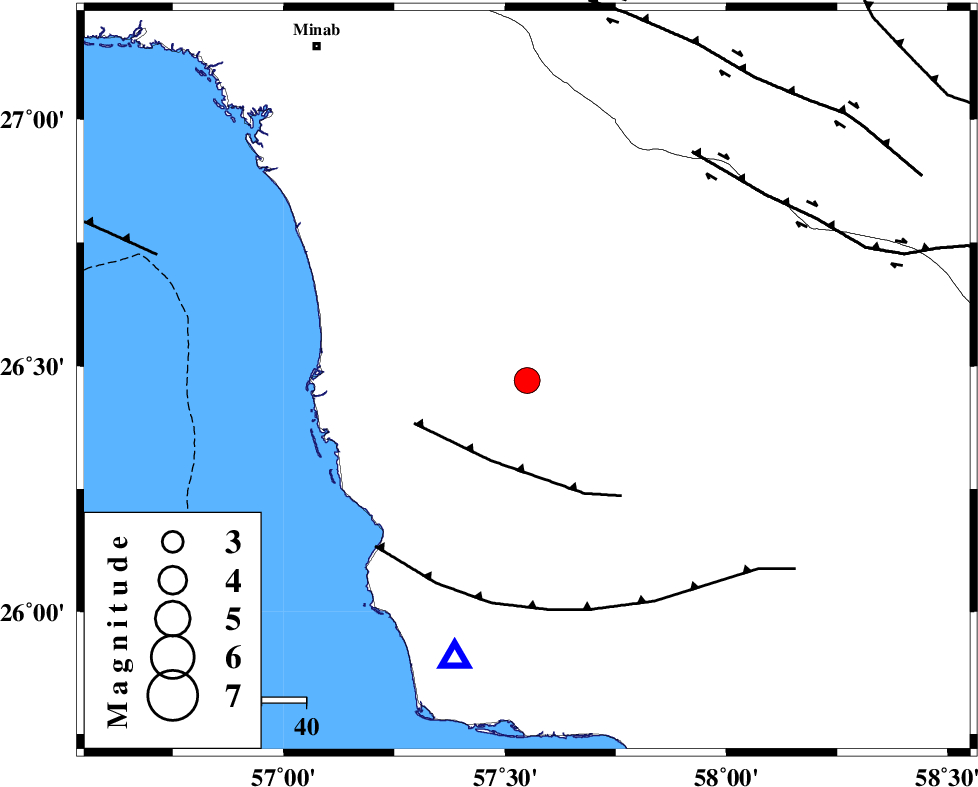

| Location | Lat:26.47 Lon: 57.55 |
| Region | Hormozgan Province, 105 km South of Manujan |
Nearest Cities |
|
| 20 km South of Darpahn, Hormozgan Province | |
| 35 km North East of Gonmardi, Hormozgan Province | |
| 37 km South West of Angahran, Hormozgan Province | |
| 42 km South East of Sanadrak, Hormozgan Province | |
| 44 km East of Bandar-e sirk, Hormozgan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 9 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 15 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 33 km | |
| Number of Phases | 8 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >7.2 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89657 | IIEES | BNDS | N | 923.5 | 0.49 | 2013-06-16 03:12:48 | 2013-06-16 04:39:00 | n |
| 89658 | IIEES | KRBR | N | 116.3 | 0.67 | 2013-06-16 03:13:57 | 2013-06-16 04:39:00 | n |
| 89659 | IIEES | KRBR | E | 132 | 0.67 | 2013-06-16 03:14:00 | 2013-06-16 04:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHBR | Z | Pn | E | 2013-06-16 03:12:44 | 0.1 | y | 309 | 108 | |||
| IIEES | KRBR | Z | Pn | E | 2013-06-16 03:12:56 | 0.65 | y | 397 | 349 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-06-16 03:13:04 | -0.09 | y | 471 | 42 | |||
| IIEES | GHIR | Z | Pn | E | 2013-06-16 03:13:07 | 0.18 | y | 494 | 295 | |||
| IIEES | AHRM | Z | Pn | E | 2013-06-16 03:13:28 | -0.62 | y | 671 | 295 | |||
| IIEES | YZKH | Z | Pn | E | 2013-06-16 03:13:34 | -0.36 | y | 716 | 337 | |||
| IIEES | SHRT | Z | Pn | E | 2013-06-16 03:13:48 | -1 | y | 838 | 18 | |||
| IIEES | NASN | Z | P | E | 2013-06-16 03:13:50 | 0.36 | y | 838 | 328 | |||
