Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2013-06-16 14:05:37.5 |
| Date & Time (Local) | 1392/3/26 18:35:37.5 |

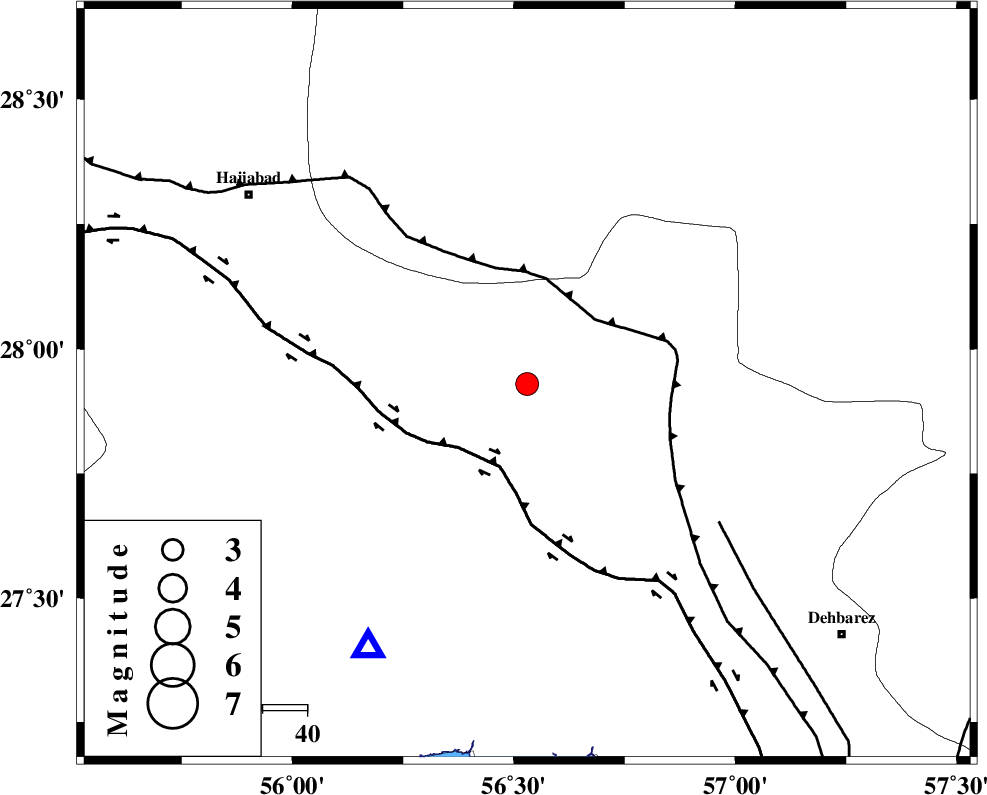

| Location | Lat:27.93 Lon: 56.53 |
| Region | Hormozgan Province, 87 km North-East of Bandar-e abbas |
Nearest Cities |
|
| 31 km East of Fareqan, Hormozgan Province | |
| 57 km South West of Sarkhan, Kerman Province | |
| 59 km South East of Arzuieeh, Kerman Province | |
| 60 km South East of Shahmaran, Kerman Province | |
| 70 km North East of Fin, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 20 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 21 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 53 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89665 | IIEES | KRBR | E | 270 | 0.88 | 2013-06-16 14:06:45 | 2013-06-16 06:09:00 | n |
| 89666 | IIEES | KRBR | N | 99.2 | 0.32 | 2013-06-16 14:06:46 | 2013-06-16 06:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2013-06-16 14:05:49 | -0.01 | y | 68.7 | 211 | |||
| IIEES | KRBR | Z | Pn | E | 2013-06-16 14:06:13 | 0.05 | y | 228 | 6 | |||
| IIEES | KRBR | N | Sg | E | 2013-06-16 14:06:42 | -0.03 | y | 228 | 6 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-06-16 14:06:41 | -0.01 | y | 455 | 65 | |||
