Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2013-06-16 22:39:46.3 |
| Date & Time (Local) | 1392/3/27 03:09:46.3 |

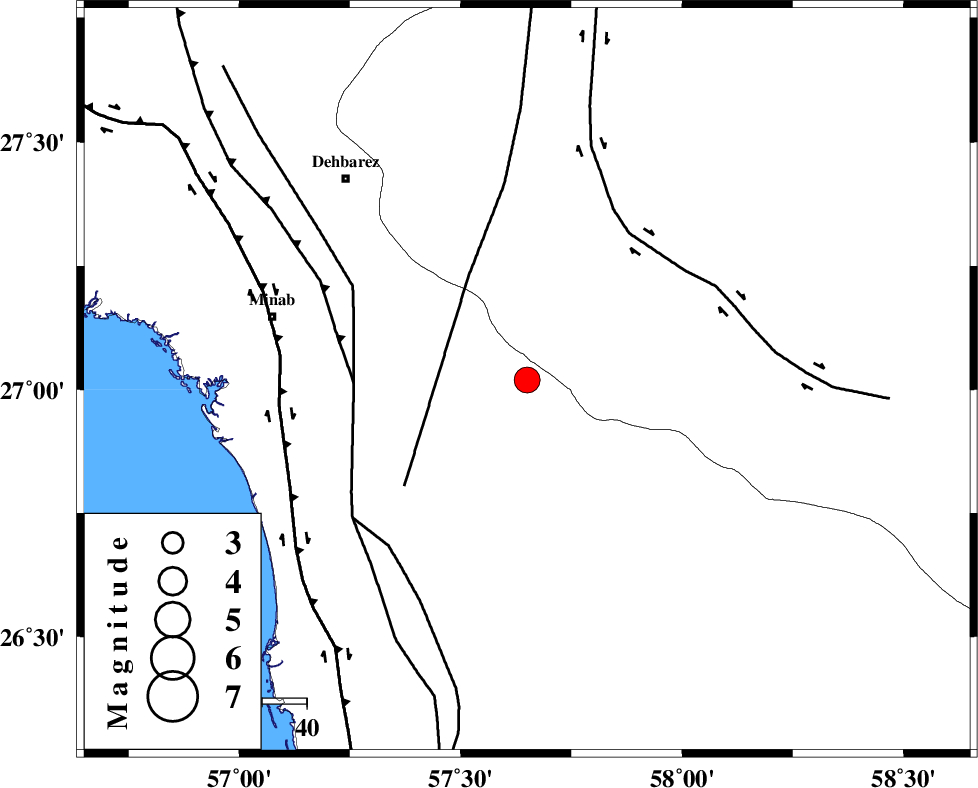

| Location | Lat:27.02 Lon: 57.65 |
| Region | Hormozgan Province, 46 km South-East of Manujan |
Nearest Cities |
|
| 28 km West of Keshmiran, Kerman Province | |
| 31 km North East of Sanadrak, Hormozgan Province | |
| 42 km North of Darpahn, Hormozgan Province | |
| 43 km North East of Koryan, Hormozgan Province | |
| 46 km South East of Manujan, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 27 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 39 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 39 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89668 | IIEES | BNDS | N | 881.9 | 0.64 | 2013-06-16 22:40:28 | 2013-06-17 01:21:00 | n |
| 89669 | IIEES | KRBR | E | 157.8 | 0.68 | 2013-06-16 22:41:40 | 2013-06-17 01:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHBR | Z | Pn | E | 2013-06-16 22:40:34 | -0.1 | y | 324 | 118 | |||
| IIEES | KRBR | Z | Pn | E | 2013-06-16 22:40:36 | 0.02 | y | 340 | 345 | |||
| IIEES | KRBR | E | Sg | E | 2013-06-16 22:41:21 | -0.08 | y | 340 | 345 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-06-16 22:40:46 | 0.14 | y | 420 | 46 | |||
| IIEES | GHIR | Z | Pn | E | 2013-06-16 22:40:53 | 0.05 | y | 481 | 288 | |||
